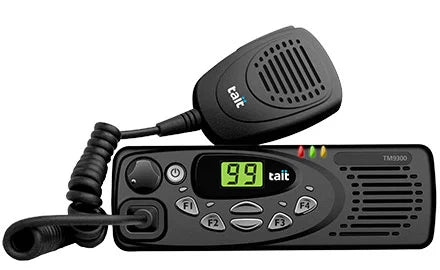

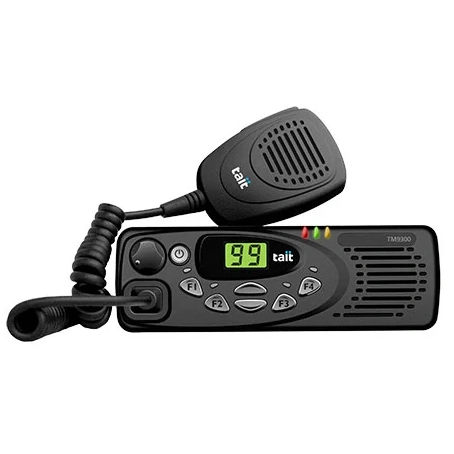

Tait TM9315 DMR Mobile Radio

TM9315 SPECIFICATIONS

FEATURES AND BENEFITS

TM9315 features to improve workforce safety
- Digital technology improves audio quality and reduces background noise to ensure clear communications
- High quality voice ensuring the operator and users will understand the message
- Emergency calls have priority access to the network
- GPS capable (software/hardware option) radio ensures that you know where your workforce is at all times
- Tait Geofencing Automated Location Controlled Behaviour
- Lone Worker
- Blast Alarms and Audible Alerts in DMR modes

Tait Geofencing Automation
- Radio scan automatically take a range of actions based on location, such as change modes, send messages, hazardous area alert, activate lone worker features, or activate radio I/O's to turn lights on
- Independent of the network, dispatch, or any other software applications

Improve your organization's
efficiency
- 100 channel/talk-group capacity gives considerable flexibility
- Trunked operation allows for individual and private calls within designated groups
- Up to four trunked networks supported (MPT standard, DMR Tier 3 as a software option)
- Up to100 call presets per trunked network
- Over-the-air-programming (OTAP) with the industry-leading Tait EnableFleet
configuration management system delivers software and firmware changes over the Tait DMR Tier 3 radio network, making it faster, easier and more affordable to update and optimize the performance of the radios in your fleet

Facilities to improve network security
- Optional 56bit DES encryption ensures privacy of conversations
- Stun and Revive are implemented to temporarily deny a specific mobile access to the network
- Configurable DMR authentication to protect network access

Designed to perform in demanding environments
- High power external speaker option
- Rugged standard microphone
- Tough die-cast metal chassis with IP54 rated casing, giving protection against dust and splashing water

Voice communications delivering on operational needs
- Quad mode terminal offering, Conventional DMR Tier 2 conventional FM,MPT 1327and trunked DMR (software option) in one device
- Roaming between Conventional FM and Conventional DMR networks
- Roaming between MPT 1327and trunked DMR networks
- Group calls allow separate teams to communicate amongst themselves without having to listen to irrelevant traffic
- Channel capacity with support of up to 100 channels
- Digital simplex mode
- Analog capability, includes foreground scan, CTCSS and DCS
- High quality voice
- Shared programming structure between 9300 terminals

Complete package with accessories portfolio
- Audio accessories are available including microphones and external speakers
- Variety of power supply units are available for your region and your specific application
- Vehicle installation kits for different mounting options
- Programming and service kits for ease of configuration and set up

Smart features
- Low standby power consumption
- Wide power control 1:25ratio(25W)
- Duty 33% transmit 2 minute TX 4 minute RX (25W)
- Control of digital outputs by status messages

Flexible and Easy to Use
- Channel Authorization for DMR Tier 2 and Tier 3 gives users confidence their call will be heard
- Proceed to Talk Tone available in all modes, for consistent operation

Data Services
- Short data messages for location, status, and text
- CCDI connectivity to the mobile for short data and control messages in conventional mode
- RAP connectivity to the mobile for short data and control messages in trunked mode
- IP data in digital trunked mode
- USBD Fast Polling - capable of 2000 polls per minute on compatible DMR Tier 3 systems



Available in Tri-Mode in VHF or UHF Versions:

TM9315B1AAAAU00001 - Tri-Mode VHF 136-174MHz

TM9315H5AAAAU00001 - Tri-Mode UHF 400-470MHz

TM9315H7AAAAU00001 - Tri-Mode UHF 450-520MHz



Available in Quad-Mode with Trunking in VHF or UHF Versions:

TM9315B1AAAAU00009 - Quad-Mode Trunked VHF 136-174MHz

TM9315H5AAAAU00009 - Quad-Mode Trunked UHF 400-470MHz

TM9315H7AAAAU00009 - Quad-Mode Trunked UHF 450-520MHz



## Pricing includes the U Cradle Installation Kit - Please Contact Us for Pricing on Alternative Installation Options (Slide in Cradle, Security Cradle or Universal Cradle)







Click Here to View the Brochure
