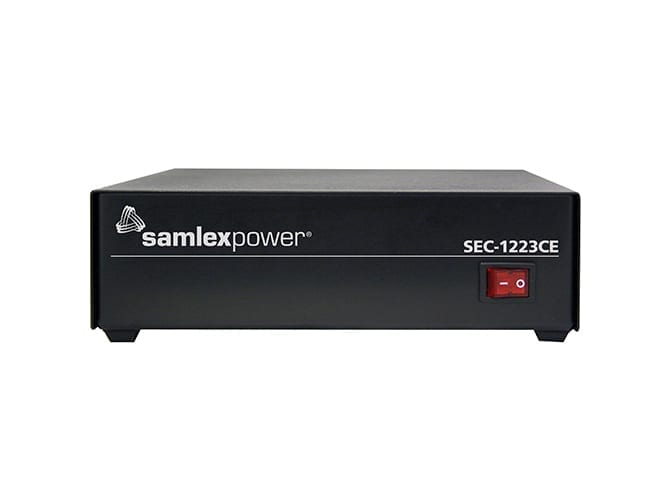

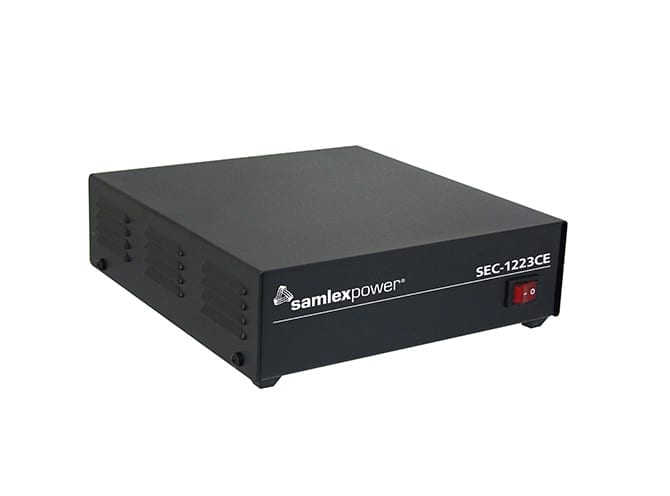

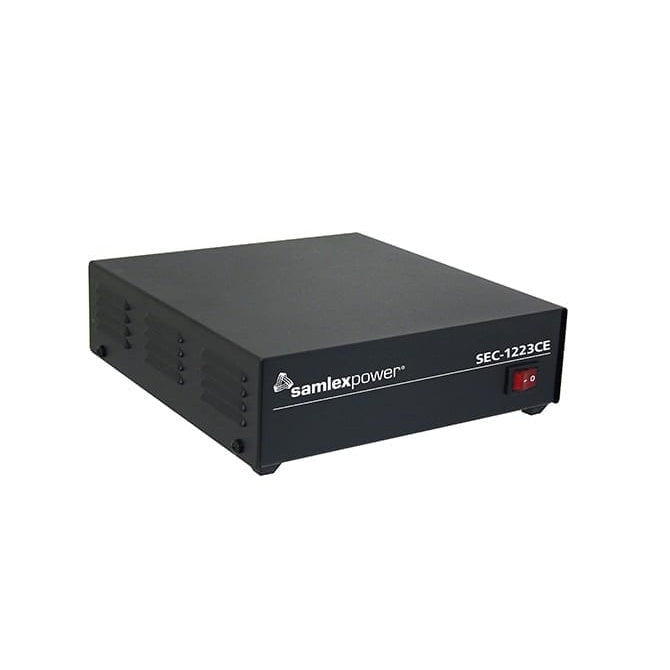

Samlex SEC-1223CE Desktop 23Amp Power Supply Input 230VAC, Output 13.8VDC

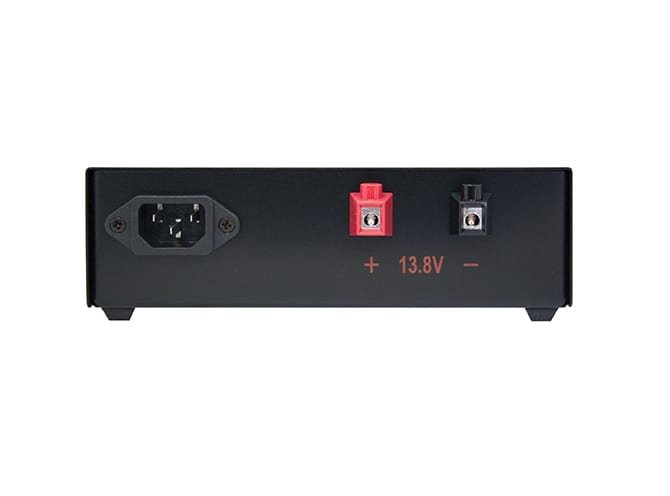

This high efficiency AC-DC power supply provides a highly regulated output DC voltage of 13.8 Volts at 23 Amps with an AC input of 230 Volts, 50 Hz. These advanced switch-mode DC power supplies were designed specifically for use with land mobile radio. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with “SCHUKO” plug. Features include over-current, short-circuit, over-voltage and over-temperature protection. The AC-DC power supply conforms to EN60950 safety standards and EN55022 class B, EN6100-3-2,3 and EN61000-4-2,3,4,5,6,8,11 EMI/EMC standards.
Features:
Advanced switch-mode technology
Reliable power with minimum weight and size
Circuit innovations minimize output voltage ripple and RFI
Input voltage 230 VAC
Specifications:
Input: 230 VAC, 50Hz Output: 13.8 VDC Amps: 23 Amps Fuse: 6.3 Amps Weight: 4.8 (lbs) Weight: 2.17 (kg) Dimensions: 8.19 x 7.28 x 2.4 (in) Dimensions: 185 x 208 x 59.5 (mm) Safety: RoHS Compliant
