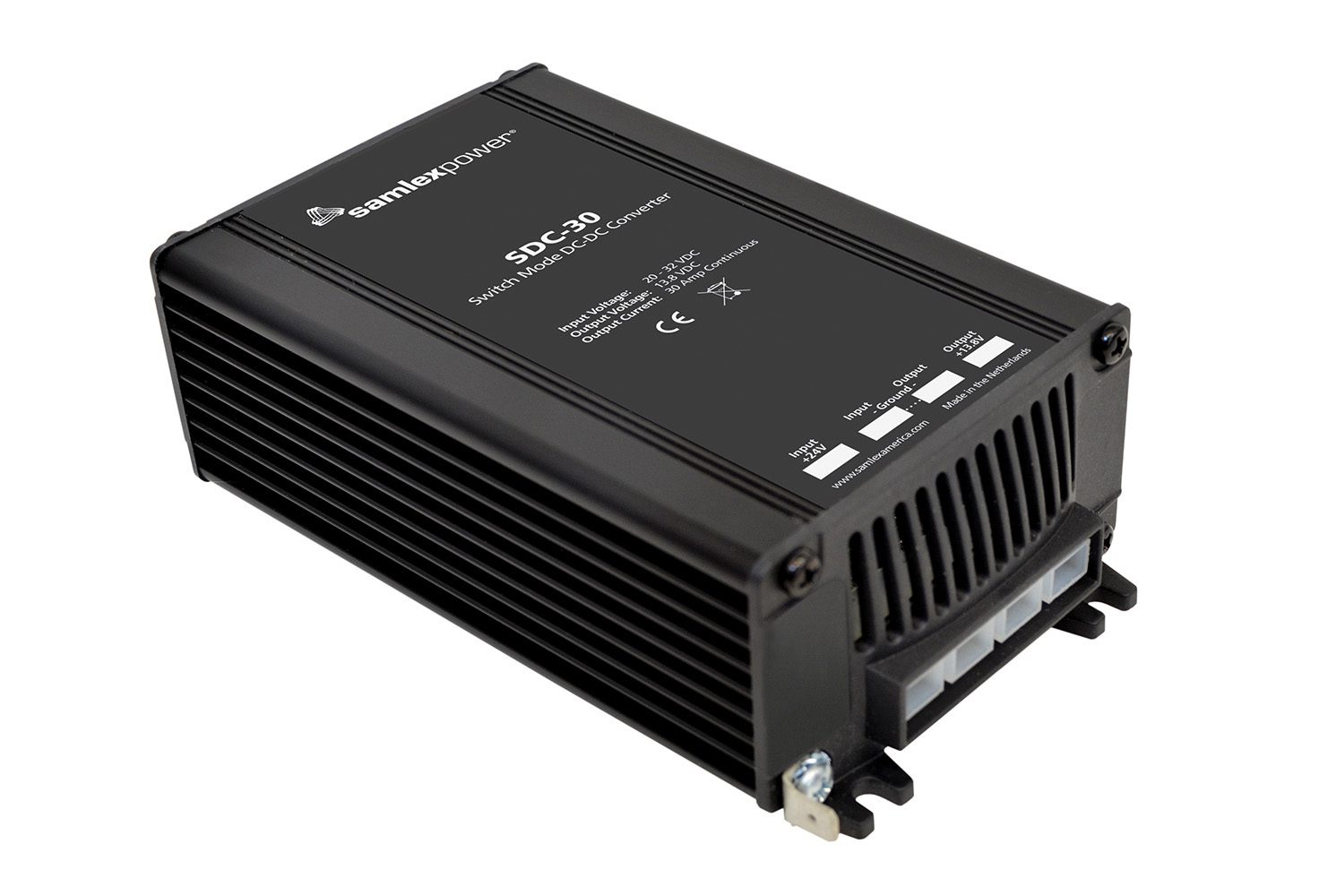

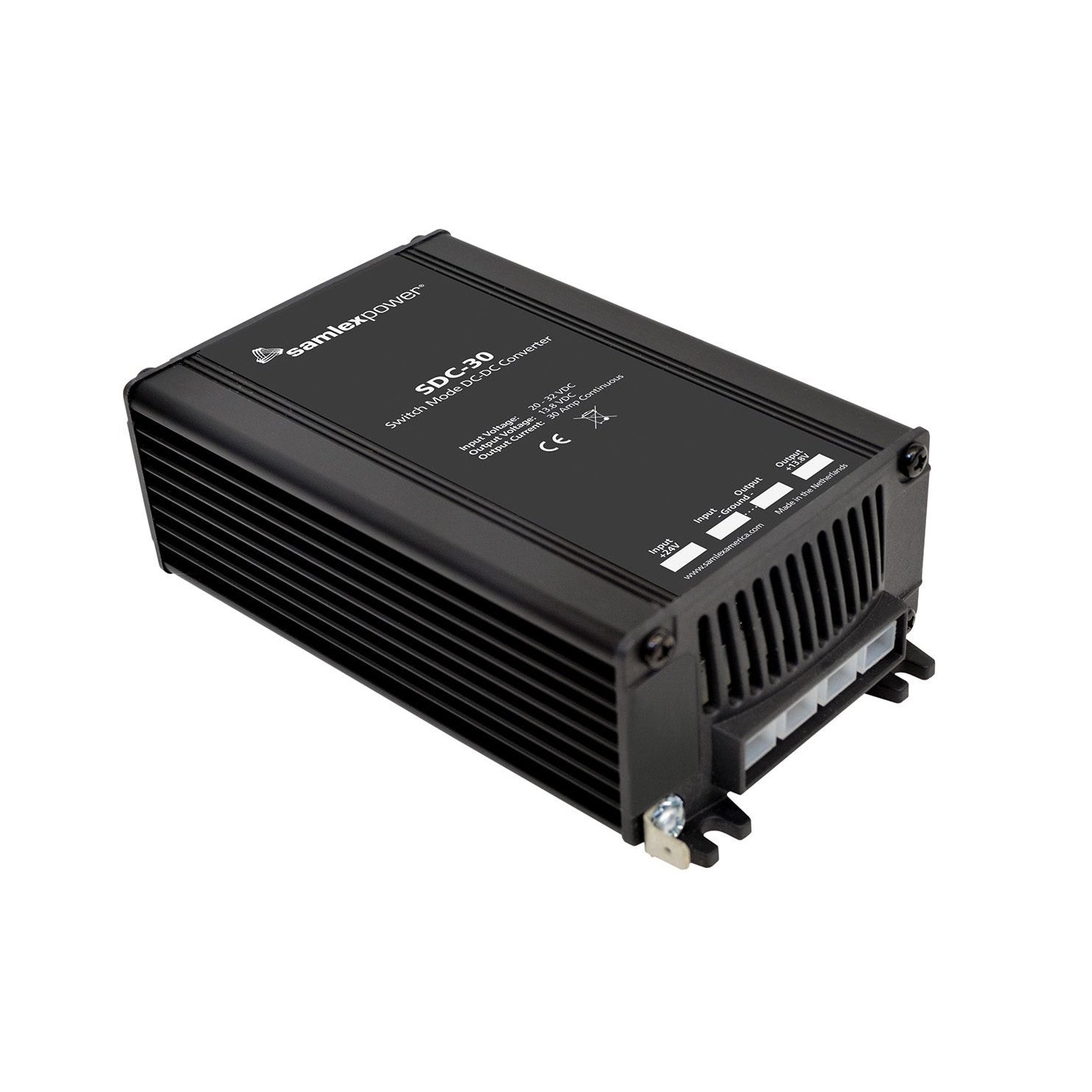

Samlex SDC-30 DC-DC Step Down Non-Isolated 30Amp Voltage Converter - Input 20-32VDC - Output 13.8VDC
This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 32 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 30 Amps. The SDC-30 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems.
Features:
Advanced switchmode design
Mount in almost any location
Compact and light weight
Reverse polarity protection
High efficiency
Cycle by cycle current limiting circuit
Overvoltage protection
Short circuit protection
Specifications:
Input: 20-32 VDC Output: 13.8 VDC Amps: 30 Amps Weight: 1.2 (lbs) Weight: 0.54 (kg) Dimensions: 6 x 3.5 x 1.9 (in) Dimensions: 49 x 88 x 151 (mm)
