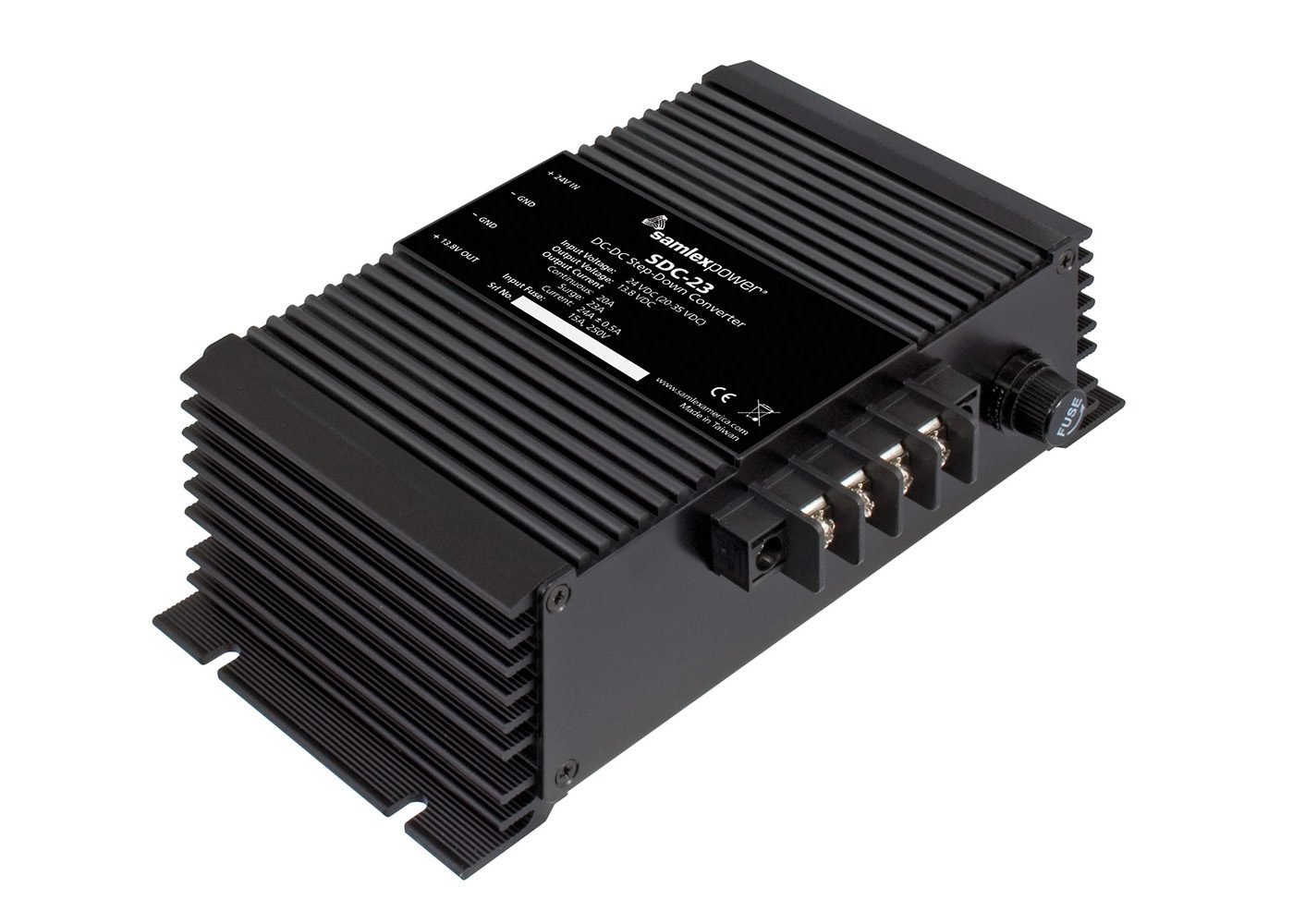

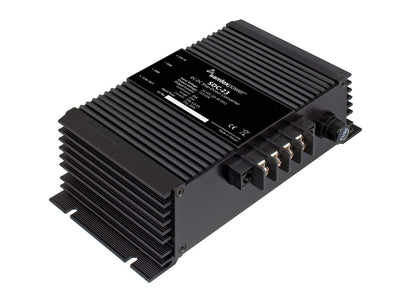

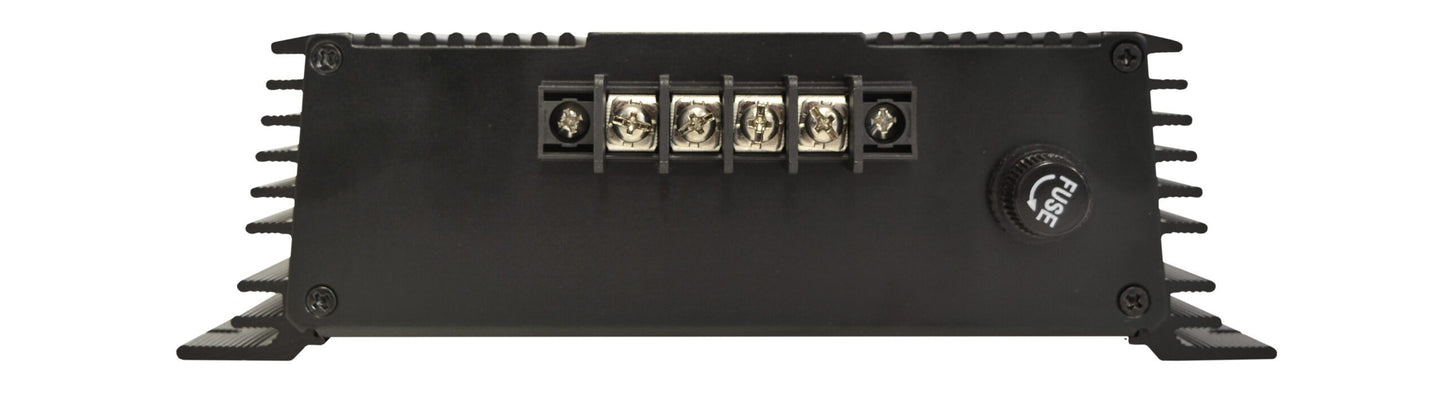

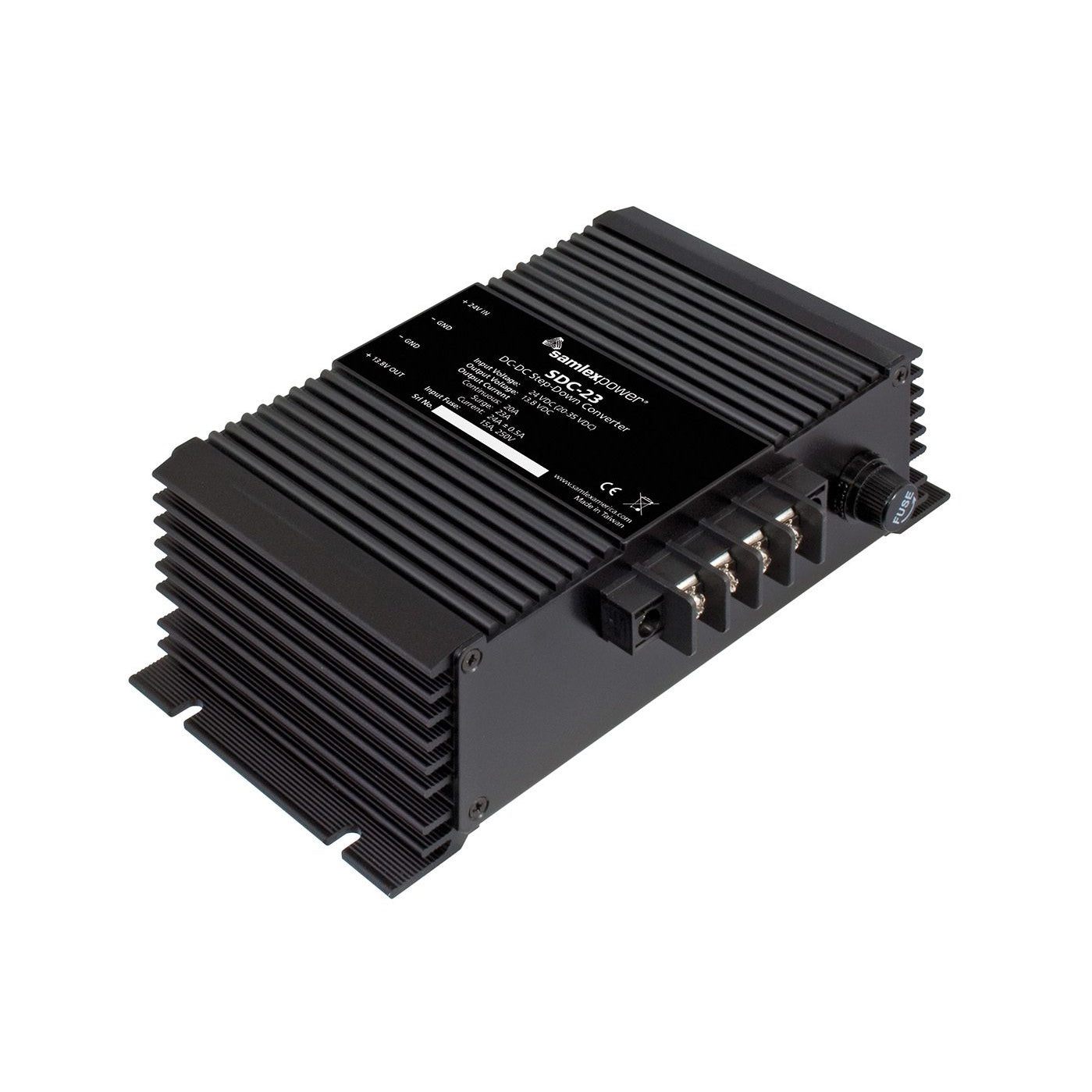

Samlex SDC-23 DC-DC Step Down Non-Isolated 20Amp Voltage Converter - Input 20-35VDC - Output 13.8VDC
This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 20 Amps. The SDC-23 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overvoltage/short-circuit protection, temperature compensated current limit, output-side overvoltage protection, input-side overvoltage/ transient protection and input-side reverse polarity protection. The SDC-23 DC-DC converter is designed for heavy duty applications.
Features:
- Advanced switch-mode design
- Converts 24 VDC to 12 VDC
- Compact and light weight
- High efficiency
- Current limiting circuit
- Over voltage protection
- Short circuit protection
- Reverse polarity protection
- Mount in almost any location
Input: 20-35 VDC
Output: 13.8 VDC
Amps: 20 Amps
Weight: 2.2 (lbs)
Weight: 1 (kg)
Dimensions: 7.8 x 4.8 x 2.4 (in)
Dimensions: 198 x 122 x 60 (mm)
