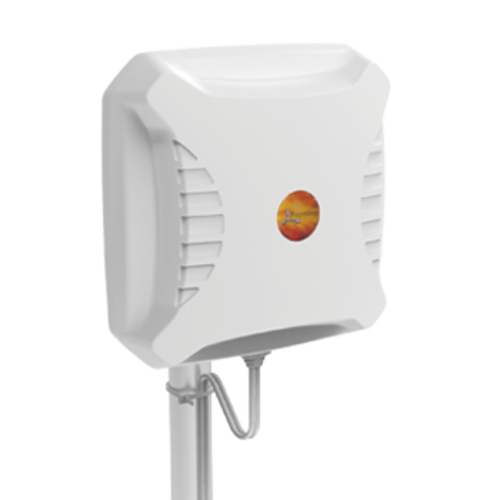

Poynting's XPOL-2-5G is it's third generation “V3” of this very popular Cross Polarised (XPOL) 2x2 MIMO antenna. With advanced metamaterial technology, making use of Artificial Magnetic Conductors (AMC) and new registered radiator configuration, it is proving to yield exceptional improvements in bandwidth and gain over previous versions. Radiation patterns of this antenna are exceptionally well controlled, further adding to the performance of the antenna. The XPOL-2-5G antenna includes the newer 3400 - 4200 MHz bands, making it suitable for 2G, 3G, 4G & 5G applications.

This antenna performs exceptionally well in the following frequency bands: 617 – 960MHz, 1710 – 2170MHz, 2300 – 2700MHz & 3400 – 4200MHz.

Key Features:

● Covers 3400 to 4200MHz, 5G band with 11dBi gain
● Consistent broadband performance
● X-Polarised 2x2 MIMO Antenna
● Wall or pole mountable
● Lightweight & Rugged
● Weatherproof & waterproof (IP65)
● High pattern consistency across bands for 4G/5G carrier aggregation

Applications:

• Outdoor antenna for Fixed Wireless Access (FWA)
• Consumer LTE/5G internet connectivity
• Industrial & Commercial LTE/5G deployments
• Urban and rural household reception enhancement
• Agricultural & Farming LTE/5G data distribution
• Power, Energy & Water telemetry access
• Oil & Gas communication systems
• Municipal & Government systems
• Repeaters & coverage enhancement amplifiers
