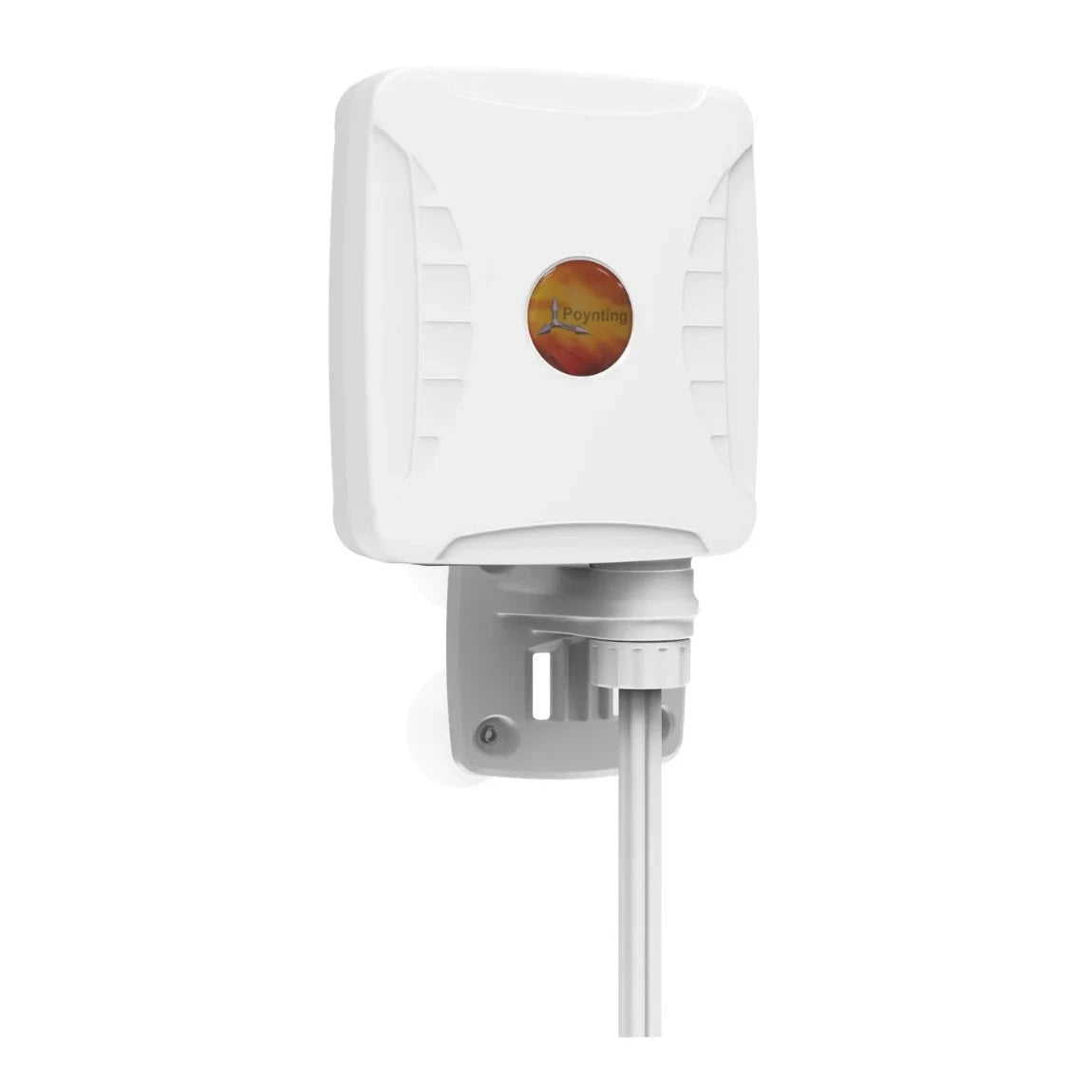

Poynting XPOL-1-5G is there second generation of this very popular Cross Polarised (XPOL), cellular band, 2x2 MIMO antenna. The addition of a 4X4 MIMO derivative is also available for user specific needs. The antenna has been completely redesigned from the previous generation with an all new enclosure and antenna design. The antenna also covers the newer 3400 - 3800 MHz bands as well as the in demand lower 617 MHz band and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 617–960 MHz, 1427–1517 MHz, 1700–2700 MHz & 3400–3800 MHz, with a peak gain of 3.5dBi across the frequency bands of operation. The radiation patterns of this antenna are omni-directional and exceptionally well controlled, further adding to the performance of the antenna. This makes the antenna perfect for most application areas, such as urban and commercial to achieve the best possible coverage over a large area. The robust mechanical enclosure design makes the antenna weather, dust and vandal resistant and gives it an IP65 rating, suitable for harsh environments

Key Features:
• New 3400 to 3800MHz, 5G band
• Broadband, including the latest 3.5GHz bands
• X-Polarised 2x2 or 4X4 MIMO Antenna
• Wall or pole mountable
• Lightweight & Rugged
• Weatherproof (IP65)
• High pattern consistency across bands for 4G/5G carrier aggregation

Applications:
• Outdoor antenna for Fixed Wireless Access (FWA)
• Consumer LTE/5G internet connectivity
• Industrial & Commercial LTE/5G deployments
• Urban household reception enhancement
• Power, Energy & Water telemetry access
• Oil & Gas communication systems
• Municipal & Government systems
• Repeaters & coverage enhancement amplifiers
