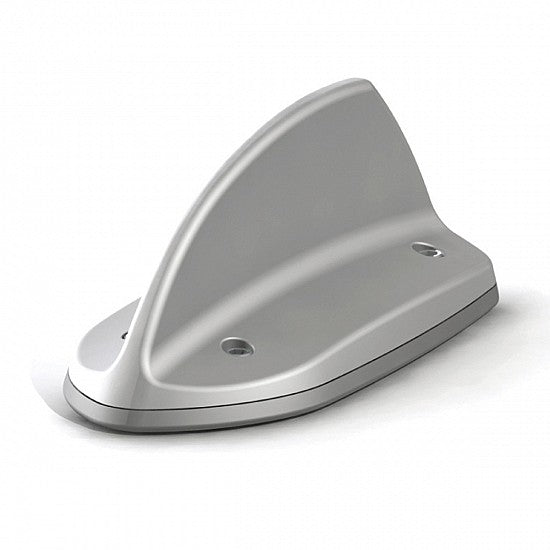

The TLA4100/4200 Antenna is designed specifically for rail, light rail and bus applications and other similarly demanding transit or stationary applications.
With a VSWR less than 2:1 covering 800-5800 MHz (off a ground plane) and 2.5:1 (full band on a ground plane), the TLA4100/4200 operates in most cellular bands globally plus the 2.4 & 5.8 GHz ISM bands. In addition the TLA4200 incorporates an active GPS antenna for asset tracking and AVL applications. Designed utilising a high impact, UV stabilised low Flame, Smoke and Toxicity (FST) radome, the TLA4100/4200 is IP68 rated to fully protect against the ingress of dust and water.

Designed to meet the following European Traction Industry Standards:

• NF-F-16-101/102 (materials standard)
• EN50155 (vibration standard)
• EN50124-1 (electrical isolation standard)
• Functions with or without a ground plane*

* Nominated gain achieved using a 1m2 ground plane.

Click Here to View the Brochure
