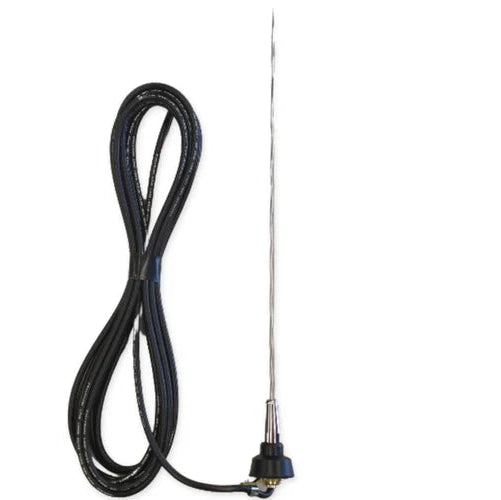

Features: The Delta series antennas allow coverage of greater than 6% bandwidth for a VSWR of less than 1.5:1 in the VHF bands. This bandwidth is even greater at UHF frequencies due to the increased diameter to length ratio of the whip section. This bandwidth is made possible through the extraordinary performance characteristics of the MB14 antenna base. The MB14 base is intricately constructed, much like a coaxial connector, and provides a useable frequency range extending well above 1000MHz. The precisely controlled termination results in a superb match, and facilitates the unusually broad bandwidth. Delta Series antennas are unity gain antennas, which deliver a standard, omnidirectional pattern when mounted in the centre of a metal roof. The radiating sections are constructed from extremely flexible 17-7PH stainless steel to resist bending and deformity. The DSW1401 features a bright stainless steel finish and the DSW1402 is finished in stylish black high gloss plating. The antennas are supplied packaged complete with whip section, mounting base fitted with cable and an instruction sheet for easy installation by semi-skilled personnel.
• Broad bandwidth allows coverage of entire operating bands
• MB14 constant impedance base designed specifically for high performance at frequencies up to and above 1000 MHz
• Whip sections are interchangeable and easily replaced in the field
• 17-7PH stainless steel whip section
• Supplied package includes base, whip, cable and instruction sheet for easy installation
• Slimline ferrule
