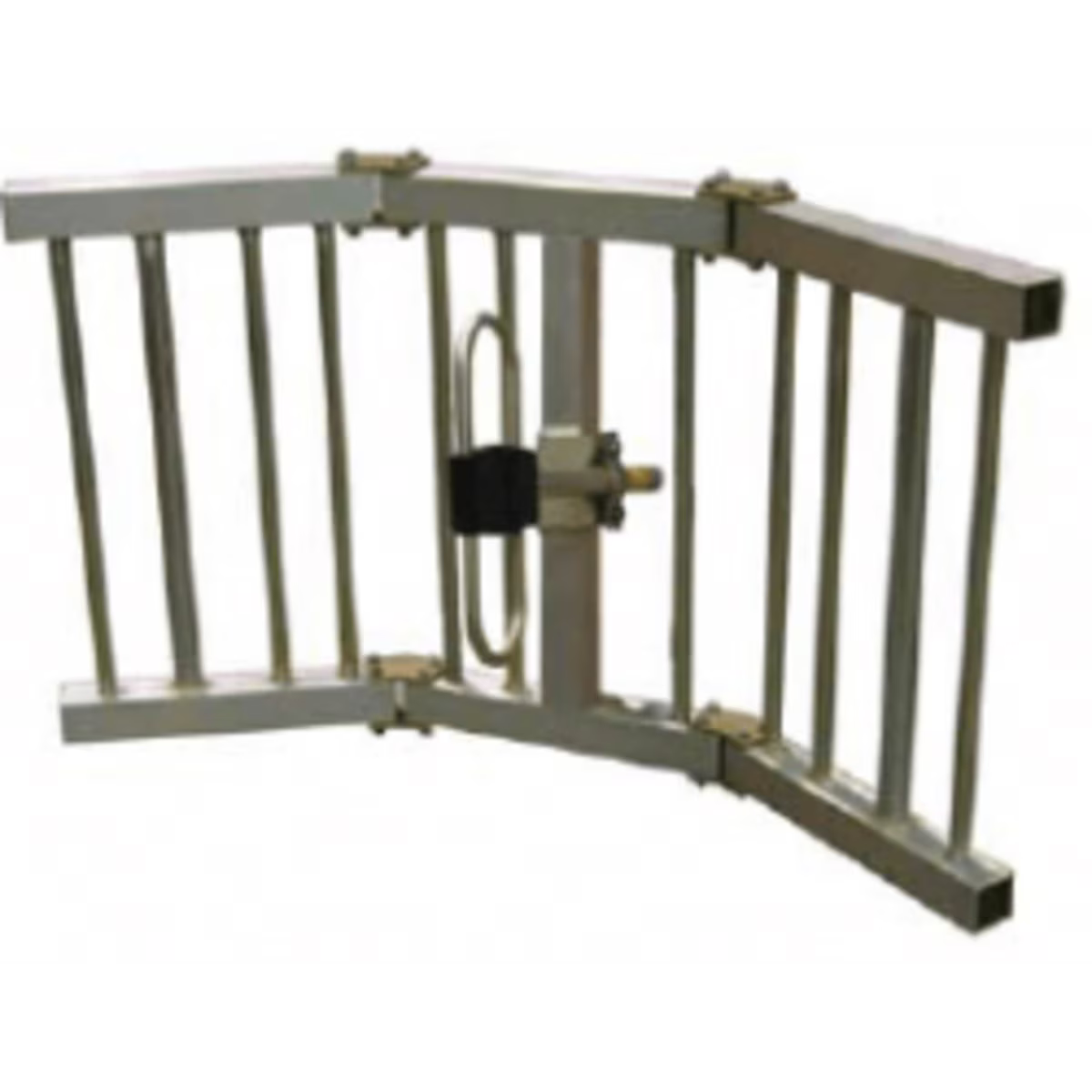

RFI CSA10-67-P - UHF Single Dipole Base Antenna with Corner Screen 406-512MHz - 4.3-10
The CSA Series arrays are based on the popular SMD dipole antennas. Supplied in “kit” form these antennas are delivered in flatpack packaging to minimise freight and warehousing issues and allow for simplified assembly at time of installation. These Arrays feature the same solid construction as the standard array series. The folded dipoles utilise an internal phasing harness in PTFE based double screened coaxial cable with a polyethylene jacket. The screens themselves are designed and constructed in such a way as to mitigate the occurrence of PIM. These rugged antennas provide not only excellent radiation characteristics but also DC grounding provides the ultimate in lightning resistant antennas, and low static noise.
CSA10-67-P Features: Offset(cardioid) pattern with 70 degree nominal horizontal Beamwidth High front to back ratio to allow frequency re-use by tailoring coverage areas Hermetically sealed internal PTFE based phasing harness capable of 500W continuous operation Shipped unassembled for ease of handling, easily assembled on site Direct DC grounded for lightning protection and reduction of precipitation static noise Industry leading PIM ratings (-140dBc) providing low IM and low noise characteristics
