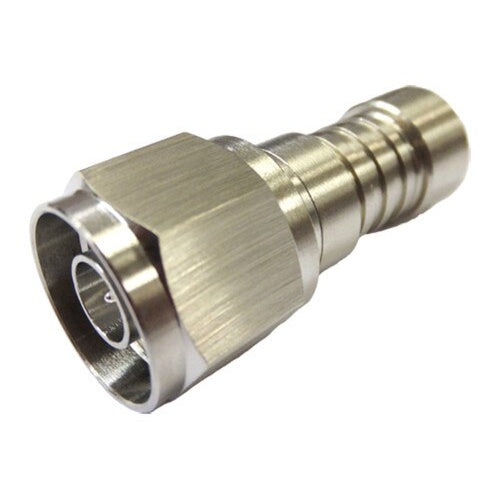

RFI 400APNM-CS8 - Andrew N Type Straight Plug (Male) Captive/Crimp Hex Connector for CNT-400 Cable

The legendary ANDREW® brand has returned. Now part of the Amphenol family, ANDREW leverages more than 85 years of wireless innovation to deliver simple, efficient, enduring and sustainable solutions for mobile network operators and enterprises worldwide.

Captive/Crimp Plug for CNT-400 Cable
Hex for wrench tightening
Captive inner contact (Silver Pin)
Crimp outer contact (10.9mm die)

Insertion Loss, typical    0.05 dB
Cable Impedance    50 ohm
Connector Impedance    50 ohm
dc Test Voltage    2500 V
Inner Contact Resistance, maximum    1 mOhm
Insulation Resistance, minimum    5000 mOhm
Operating Frequency Band    0 – 6000 MHz
Outer Contact Resistance, maximum    0.25 mOhm
Peak Power, maximum    10 kW
RF Operating Voltage, maximum (vrms)    707 V
