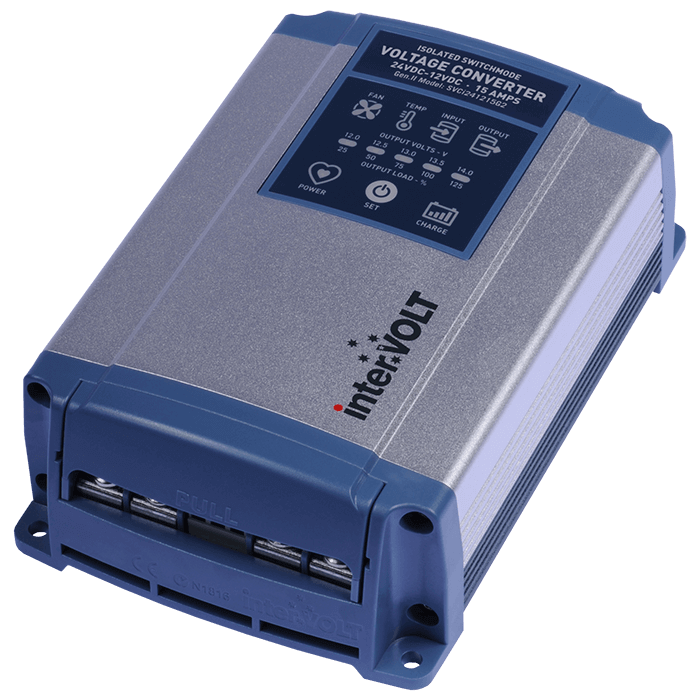

interVOLT SVCi241215G2 - GEN II Maxi Isolated Switchmode Voltage Converter 24-12V - 15A continuous / 25A Max
The GEN II range of SVCi Voltage Converters Isolated Maxi are designed on the solid foundation of the original product with a host of new features and benefits.
With digital over analogue topology the GEN II range allows the installer/operator to control and monitor various functions and provides valuable feedback on the status of the connected load. The GEN II is more compact due to multi-speed fan cooling and as a result no longer relies on convection for cooling.
Galvanic isolation ensures there is no common connectivity between the input and output via positive or negative conductors. This means peace-of-mind when connecting sensitive and often expensive, high-end electronic equipment to the output.
The benefits of using an isolated converter are many including elimination of line interference, greater protection, better regulation and improved performance.
| Model | Isolated | Input Voltage | Output Voltage | Continuous Rating |
|---|---|---|---|---|
| SVCi241215G2 | Yes | 20 – 33VDC* | 12.0 – 14.0V | 15 Amps @ 40°C |
| SVCi241225G2 | Yes | 20 – 33VDC* | 12.0 – 14.0V | 25 Amps @ 40°C |
## will dip to 17V – in power supply mode only
The second generation interVOLT SVCi Maxi series isolated voltage converters are the evolution of the original and renowned SVCi models first released in 2003. The GEN II Series is not just a cosmetic ‘makeover’ but rather a complete new product from the ground up. The all new design features complete digital control with a specification second-to-none. Here are just a few of the features and benefits exclusive to the new range:
- Unique operator interface for control and monitoring
- Galvanically isolated input to output – no common connectivity
- Handy charge mode for charging a 12V auxiliary battery (2 stage)
- High resolution voltage output of less than 0.5% under any load
- Peak efficiency of 92% (better than 90% under most load conditions)
- Remote operator control to turn unit on/off with signal current only
- Multifunction alarm output for fault and pre-emptive warnings
- Temperature and speed controlled internal cooling fan (ball bearing)
- Compact design and can be mounted vertically or horizontally
- Heavy duty termination with separate, removable terminal cover
- 24 months warranty (subject to specific terms and conditions)
- High quality assembly featuring marine grade hardware
- Conformally coated printed circuit board assembly (tropicalisation)
