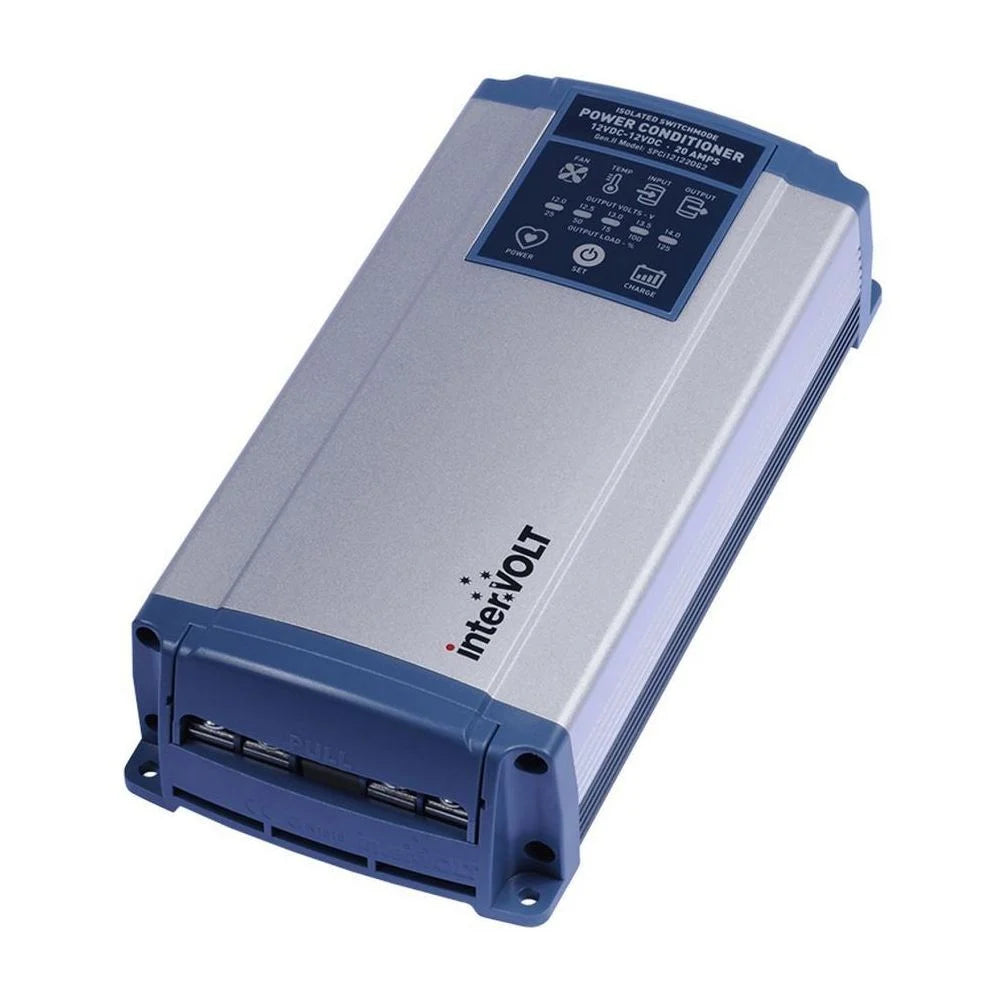

interVOLT SPCi121220G2 - GEN II Maxi Isolated Switchmode Power Conditioner 12-12V - 20A continuous
The interVOLT’s SPCi Power Conditioners Isolated Maxi are known for resolving many of the issues associated with DC power in vehicles and vessels. They are in fact a converter, stabilizer, isolator and regulator all built into a single innovative package.
The next generation version of this cutting-edge product is now available. These devices feature galvanic isolation with no common connectivity between the input and output via positive or negative conductors. This means peace-of-mind when connecting sensitive and often expensive, high-end electronic equipment to the output.
Other benefits include elimination of line interference, greater protection, better regulation and improved performance.
| Model | Isolated | Input Voltage | Output Voltage | Continuous Rating |
|---|---|---|---|---|
| SPCi121210G2 | Yes | 10.5 – 16VDC* | 12.0 – 14.0V | 10 Amps @ 40°C |
| SPCi121220G2 | Yes | 10.5 – 16VDC* | 12.0 – 14.0V | 20 Amps @ 40°C |
| SPCi242410G2 | Yes | 20 – 33VDC** | 24.0 – 28.0V | 10 Amps @ 40°C |
| SPCi242420G2 | Yes | 20 – 33VDC** | 24.0 – 28.0V | 20 Amps @ 40°C |
* will dip to 9V – in power supply mode only
** will dip to 17V – in power supply mode only
The second generation interVOLT SPCi Maxi series isolated power conditioners are the evolution of the original and renowned SPCi models first released in 2003. The GEN II Series is not just a cosmetic ‘makeover’ but rather a complete new product from the ground up. The all new design features complete digital control with a specification second-to-none. Here are just a few of the new features and benefits exclusive to the new range:
- Unique operator interface for control and monitoring
- Galvanically isolated input to output – no common connectivity
- Handy charge mode for charging an auxiliary battery (2 stage)
- High resolution voltage output of less than 0.5% under any load
- Peak efficiency of 92% (better than 90% under most load conditions)
- Remote operator control to turn unit on/off with signal current only
- Multifunction alarm output for fault and pre-emptive warnings
- Temperature and speed controlled internal cooling fan (Vapo bearing)
- Compact design and can be mounted vertically or horizontally
- Heavy duty termination with separate, removable terminal cover
- 24 months warranty (subject to specific terms and conditions)
- High quality assembly featuring marine grade hardware
- Conformally coated printed circuit board assembly (tropicalisation)
