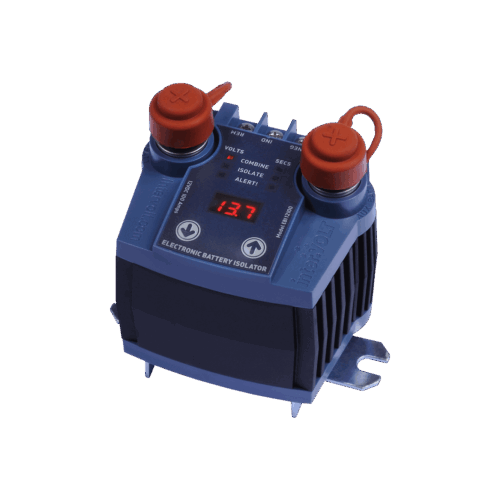

interVOLT EBI12100A - Electronic Battery Isolator
interVOLT EBI12100A - Electronic Battery Isolator
Couldn't load pickup availability
## Contact Us Directly Here for Quantity Discount Pricing ##
interVOLT EBI12100A - Electronic Battery Isolator
The EBI Pro is an electronic battery isolator aimed at replacing out-dated “electro-mechanical” type devices. Boasting features never before seen in dual battery isolators, the EBI Pro is designed to provide 4WD and RV users with real advantage and years of service.
Unlike conventional electro-mechanical isolators the EBI Pro is solid state. Solid state means no moving parts. There are no contacts to vibrate, chatter, arc, wear and ultimately – fail. The MOSFET based topology of the EBI Pro is proven. Reliability, durability and longevity are built in.
The solid state aspect is just the beginning. Designed on the back of the ground-breaking PSR, the EBI Pro is also adjustable in terms of voltage and time delay. This provides the installer or operator with the means to customise the EBI Pro for the application rather than suffer the ‘one size fits all’ philosophy from manufacturers of traditional devices.
| Model | Nom. Voltage | Input Voltage | Continuous Rating | Peak Rating |
|---|---|---|---|---|
| EBI12100A | 12VDC | 8 -17VDC | 100 Amps @ 60°C | 500 Amps – 5 Secs |
We’ve already touched on the solid state, MOSFET based topology and the programmability function but there are a host of other features designed into the product which sets the EBI Pro well and truly apart from the competition.
These are expanded upon in greater detail in the manual (see downloads) but can be summarised as follows:
- Clear LED status display and indicators for ease of operation;
- 100 Amps continuously rated with a generous 500 Amps peak;
- Dual sensing allows main battery to be charged from auxiliary;
- Output indicator function for convenient in-vehicle monitoring;
- Input for in-vehicle remote emergency combine switch (starting);
- Overload and short circuit protection with automatic shutdown;
- Over temperature protected with automatic thermal shutdown;
- Low input voltage sensing with automatic shutdown protection;
- Electronics are encapsulated in dust and water proof housing;
- Compact design can be mounted in any position that suits;
- Heavy duty construction designed for under-bonnet installations;
- 24 months warranty (subject to policy terms and conditions).
Click Here to View the Brochure
