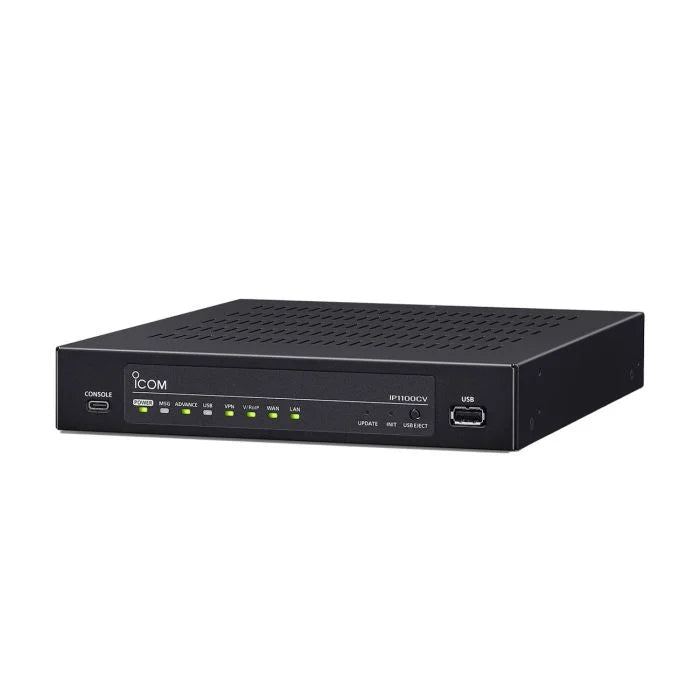

ICOM IP1100CV IP Controller - 300 Users

ICOM IP1100CV IP Wi-Fi Controller to suit the IP100H and the IP110H Wi-Fi WLAN Radios (300 Users)

IP1100CV IP/WLAN System Controller

The IP1100CV is a new system controller for use as part of ICOM’s advanced IP/Wireless LAN Radio System allowing you to build a communication system using your existing wireless LAN network.  A communication network can be easily and quickly set up by installing one IP1100CV controller onto an existing network, or by deploying wireless LAN access points around a building/location. The IP1100CV is the successor to the IP1000C-100 and has many improvements on its predecessor including expanding the wireless LAN radio system capability.

300 WLAN Radios Can Be Registered

The IP1100CV can register up to 300 WLAN Radios (including IP100FS terminals), triple the number of the IP1000C-100 system. When the IP100FS Wireless LAN radio application software is installed, you can use your Windows PC to communicate with the IP110H/IP100H Wireless LAN Radios.

Up to 500 IP110H Programmable Call Addresses

The IP1100CV functions as an auto-provisioning server. This function uses the IP1100CV to provide configuration settings for the IP100H/IP110H wireless LAN radios. When a wireless LAN radio is connected to the network, the configuration setting is automatically applied to that radio. When used with the IP100H/IP110H handset, the IP1100CV can allow call list of up to 500 call addresses (previously 50 call addresses) for individual and group calls.

2.5 Gbps WAN Port and VPN Router Function

The built-in 2.5 Gbps WAN port and VPN router function (available between IP1100CV's or IP1100CV and VE-PG4) can link multiple sites with a secure VPN tunnel via the Internet and extend the communication area of the wireless LAN radio system. By connecting between IP1100CV controllers using an Internet VPN, for instance, staff in a Head Office can communicate via wireless LAN radio with its remote branches.

19-inch Rack Mount Design

When combined with the optional MBF-6 Rack Mount Bracket, the IP1100CV perfectly fits into a 19-inch server rack.

WLAN Radio System Programmable with a Web Browser

Configurations of the IP110CV is done via a web browser. Data settings can be exported to a USB memory, also the saved data can be imported into the IP1100CV for easy maintenance.

Other Features
・Online firmware update capability
・Security Slot can reduce the risk of theft
