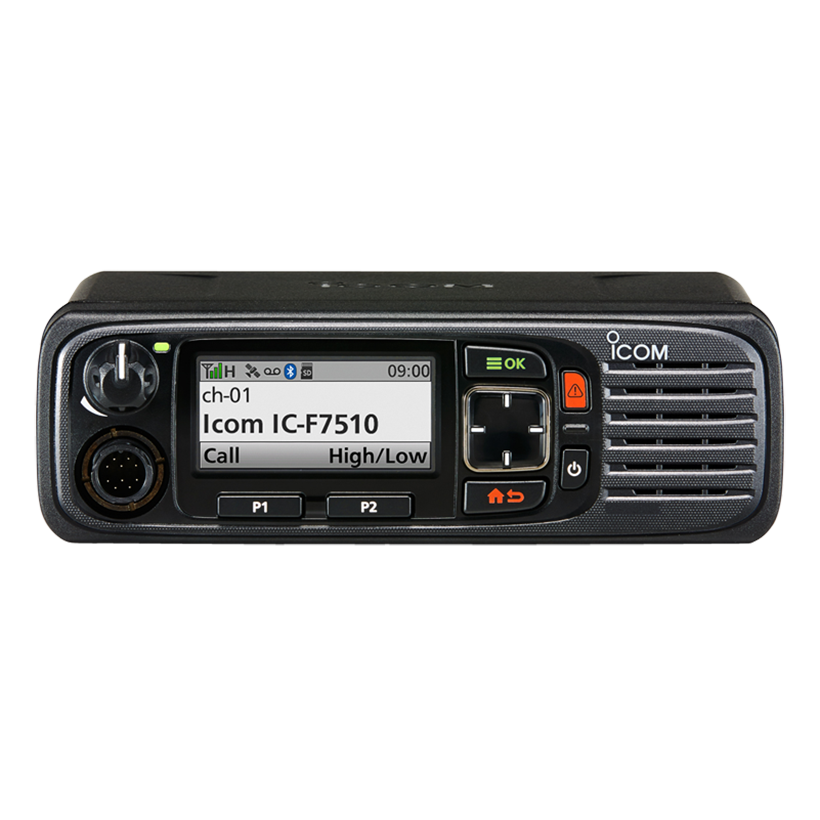

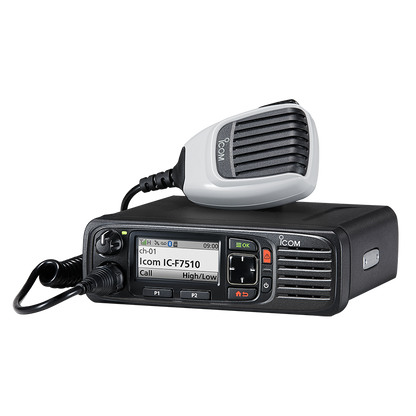

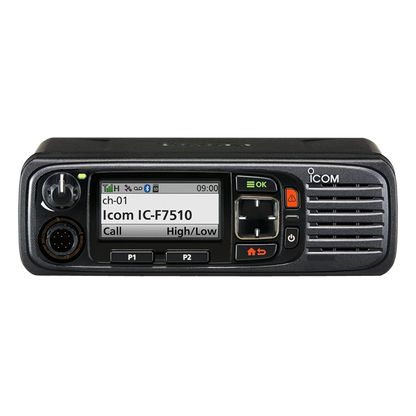

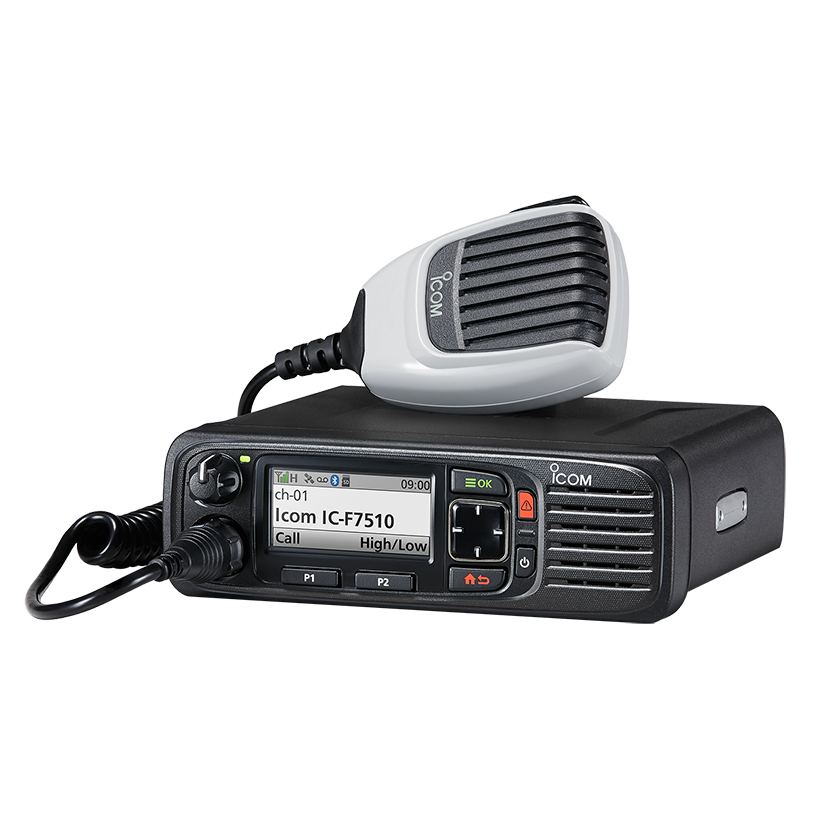

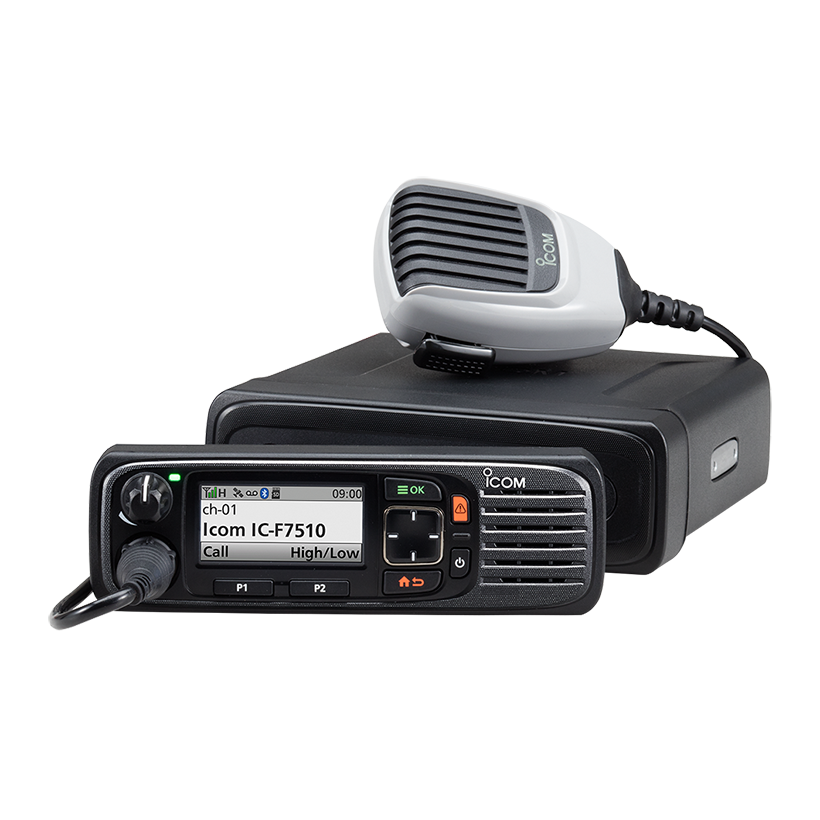

ICOM IC-F7510 VHF 136-174MHz P25 Conventional and Phase 1/2 Trunking Rugged Mobile Radio with Superior Class Leading Audio
Hardware Features
Colour LCD and Enhanced User Interface
A high-resolution colour LCD screen improves visibility in both natural and indoor lighting conditions. The night mode LCD setting can used in low-lighting or night time conditions. Functions can be easily set by following intuitive icons and menu items. Functions and menu items can be configured in languages other than English, such as French, Spanish, Russian, and Traditional Chinese.
Day and Night Mode Example
MIL-STD-810 and IP55 Specifications
The IC-F7500 series has been tested to meet U.S. MIL-STD-810 G environmental tests and has a dust protection and water jet resistance rating of IP55. It can be used with peace of mind exposed to rain or splashing water, or in dusty conditions such as outside operation.
Bluetooth® Technology Enables Wireless Operation
The built-in Bluetooth® unit provides a wireless connection with an optional Bluetooth® headset or external Bluetooth® equipment. It also has a VOX function that enables automatic voice transmission in response to your voice, allowing hands-free operation. In addition, third-party wireless Bluetooth® headset (Like a 3M™ Peltor™ WS™ 5) can be used with the radio. Wireless radio programming over Bluetooth® also possible.
## Bluetooth® connection has not been tested for all Bluetooth® compatible devices with this product. This does not guarantee that all devices will work with this product ##
microSD Card Slot for Voice and Data Storage
The IC-F7500 series has a microSD card* slot for data storage. Call record (transmitted and received) audio, GPS log, memory channel settings and firmware file can all be saved onto the microSD card.
## A microSD/micro SDHC is required (up to 32 GB) ##
USB Connector for PC Connection
The P25 radio can be connected to a PC via a USB (micro-B) port, allowing for data transfer mode, or accessing the installed microSD card in mass storage mode.
D-SUB 25-pin Accessory Connector
The P25 radio has a programmable D-SUB 25-pin accessory connector for connecting external devices. External PTT, channel mode, horn, PA (public address), RX speaker, ignition switch and dimmer control are programmable.

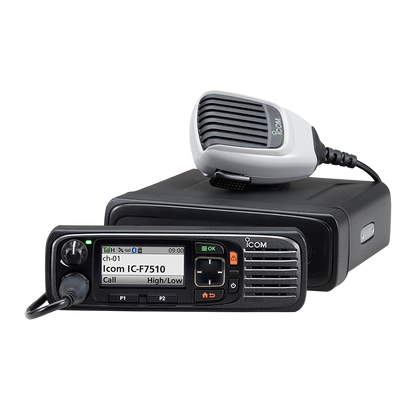

Detached Controller
A detached controller head with the separated RF unit is a simple to install in almost any vehicle.
| Categories | Model Name | Quantity |
|---|---|---|
| Separation kit | RMK-5 | 1 |
| Separation cable | OPC-2364 (1.9 m, 6.2 ft) OPC-2365 (3 m, 9.8 ft) OPC-2366 (5 m, 16.4 ft) OPC-2367 (8 m, 26.2 ft) |
1 |
| Microphone |
HM-220 (IP54) |
1 |

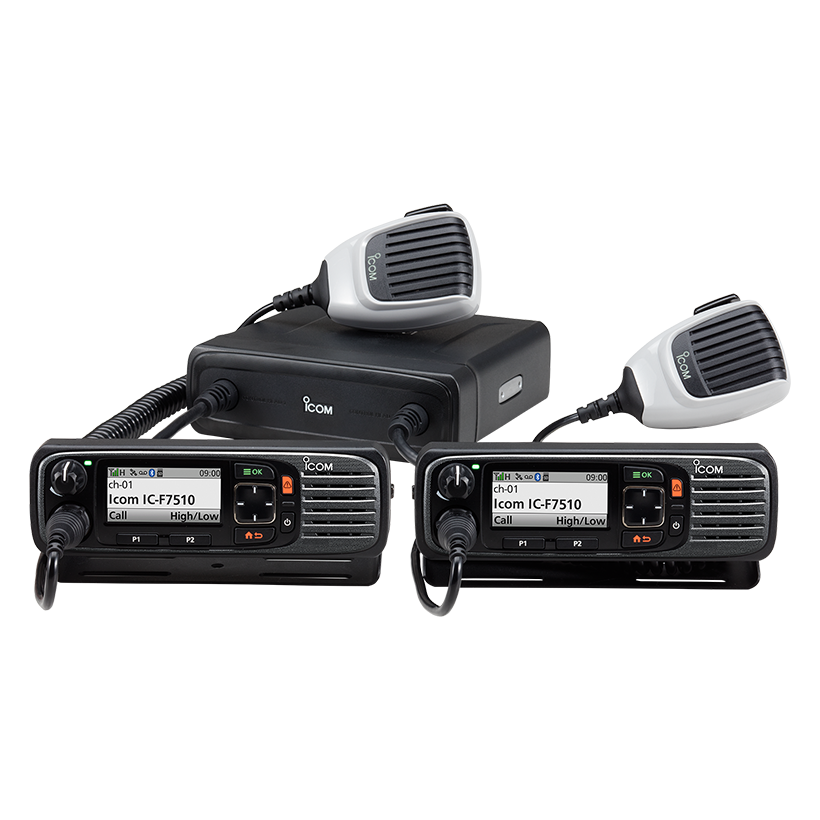

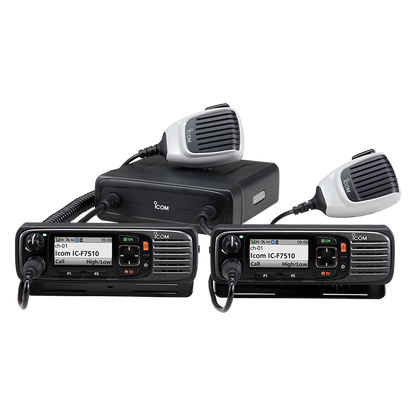

Dual Head Controller
Suitable for double cab vehicles. Install the controller head to front and rear seats respectively.
The intercom function is available between controllers.
| Categories | Model Name | Quantity |
|---|---|---|
| Separation kit | RMK-7 | 1 |
| Separation cable | OPC-2364 (1.9 m, 6.2 ft) OPC-2365 (3 m, 9.8 ft) OPC-2366 (5 m, 16.4 ft) OPC-2367 (8 m, 26.2 ft) |
2 |
| Microphone |
HM-220 (IP54) |
2 |

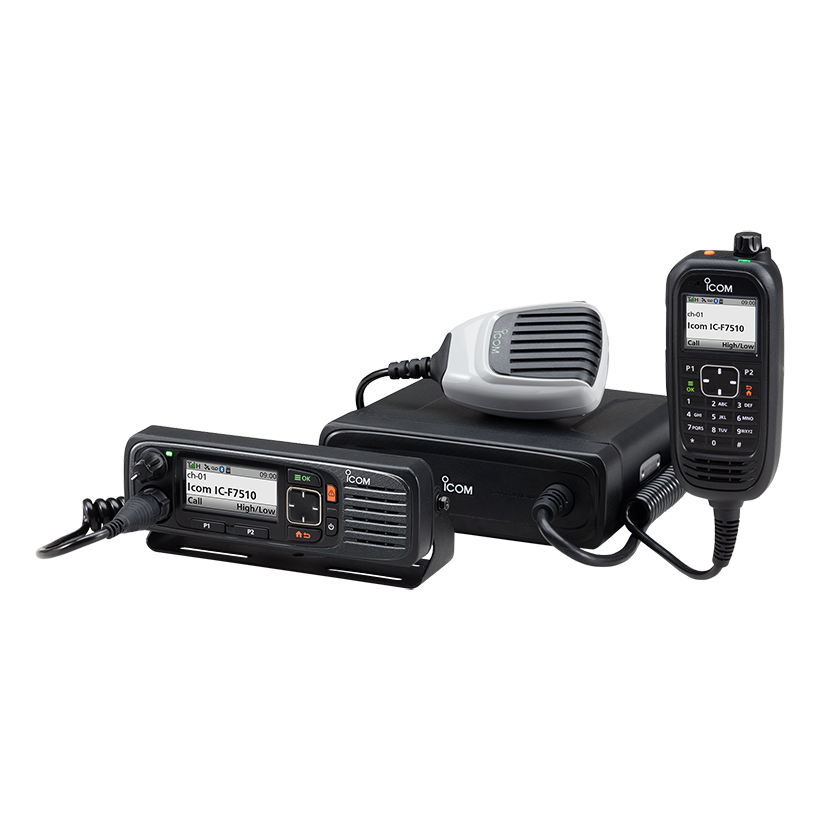

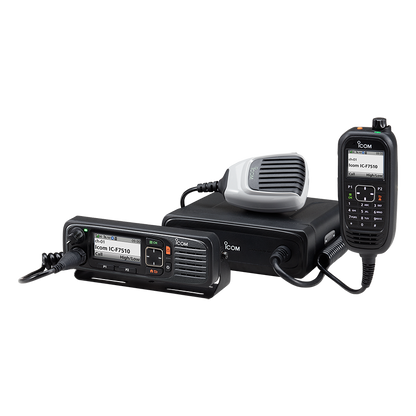

CommandMic™ and Detached Controller
The CommandMic is handy for installing a work platform on the rear part of the vehicle.
The intercom function is available between controller and CommandMic.
| Categories | Model Name | Quantity |
|---|---|---|
| Separation kit | RMK-7 | 1 |
| Separation cable (for RMK-7) | OPC-2364 (1.9 m, 6.2 ft) OPC-2365 (3 m, 9.8 ft) OPC-2366 (5 m, 16.4 ft) OPC-2367 (8 m, 26.2 ft) |
1 |
| Microphone |
HM-220 (IP54) |
1 |
| CommandMic™ | HM-218 (IP55) | 1 |
| Separation cable (for HM-218) | OPC-2373 (1.9 m, 6.2 ft) OPC-2374 (8 m, 26.2 ft) |
1 |
Other Features
- 136-174MHz
- 1024 Memory Channels / 128 Zones
- 2000 Memory Channels with optional channel expansion license key, ISL-P25CHEX
- Large sized functions and four-direction buttons
- DTMF Autodial
- Low Voltage Alert
- Programmable Ringer Beep
- Internal Clock with Time Auto Adjustment
Voice, Audio and Emergency Features
Customizable Audio Quality
P25 radios also implement audio features and settings to compliment the performance of the vocoder.
| Functions | Features |
|---|---|
| Voice Recording/Playback | This function records incoming and outgoing calls in WAV format. Various communication data is embedded in the WAV file, such as User IDs, GPS position, frequency, etc. Up to 500 hours can record to a 32 GB microSD card (user supplied). |
| TX/RX Audio Equalizer | This function can improve the audio readability by increasing or decreasing particular audio frequency components. (Flat, high/mid/low boost, low cut) |
| AF Volume Equalizing | This function adds high-pass filter to provide clear, intelligible audio, when increases the volume |
| TX/RX Active Noise Canceller | This function suppresses background noise and improves both transmitted voice and incoming calls. |
Emergency Call and Alert
To ensure users safety, P25 handheld radios have the following four emergency related functions. If one of these functions are activated, the radio automatically sends an emergency signal.
| Functions | Features |
|---|---|
| Emergency Button |
When pressed the Emergency button, the P25 radio automatically transmits an emergency call once or repeatedly. |
| Lone Worker | When no operation is performed for the specified time period, the radio enters the Emergency mode. |
| Power OFF emergency | This function makes the radio transmit Emergency calls, even though it appears to be powered OFF. |
Other Features
- Voice Announcement (Channel Number and Zone)
- Adjustable Analogue and Digital Volume Level
Click Here to View the Brochure
## Please Contact Us for a Current Price and Availability ##
