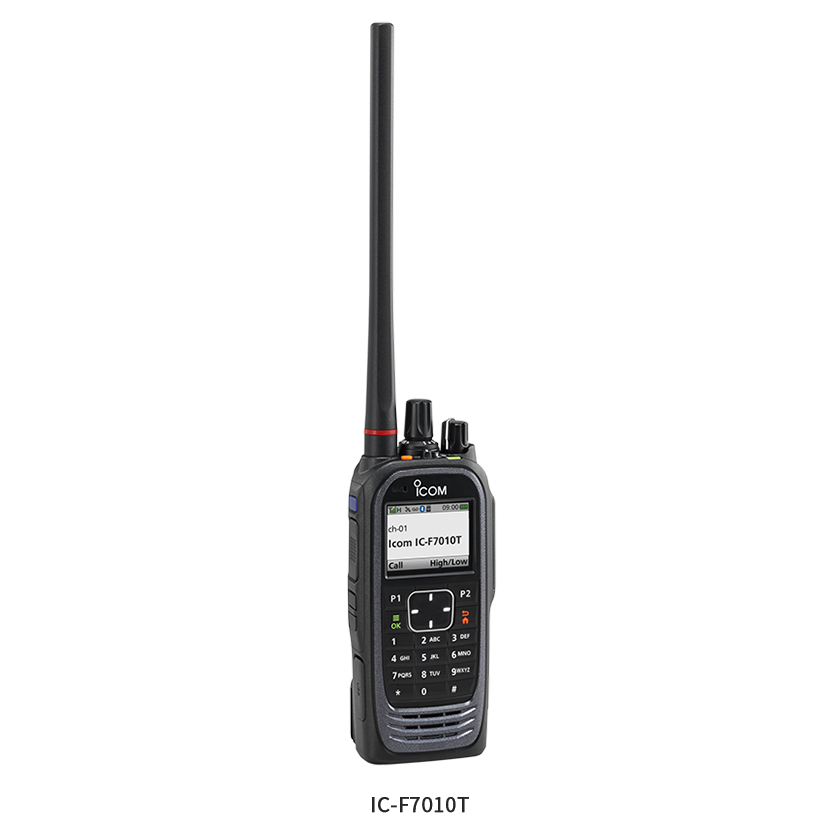

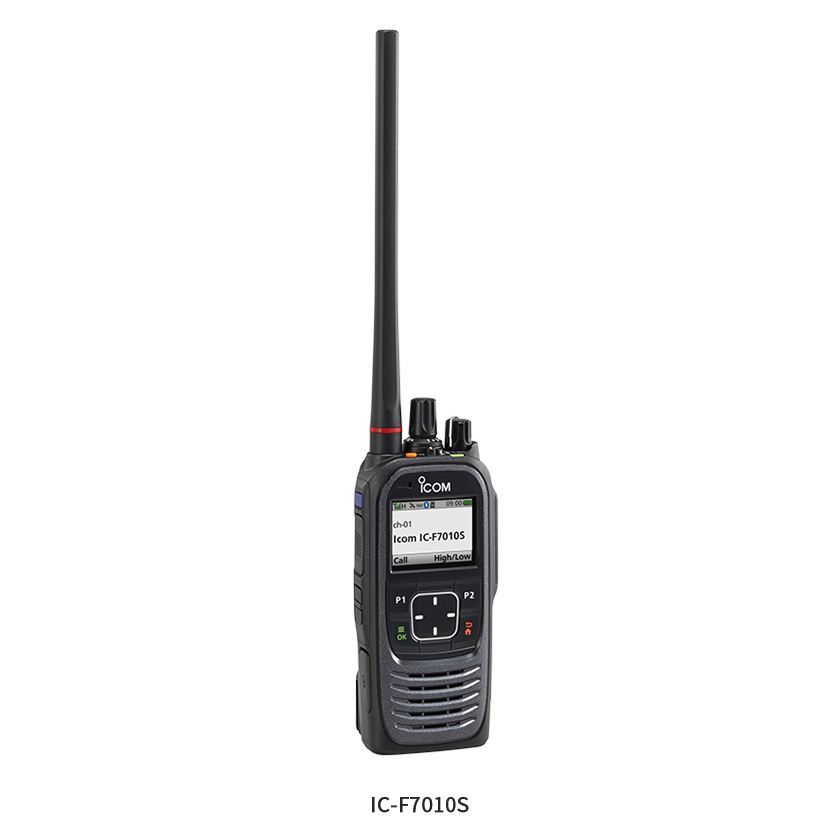

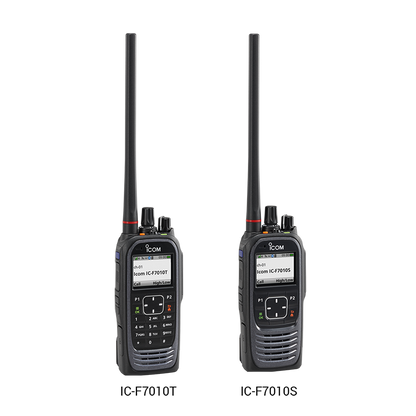

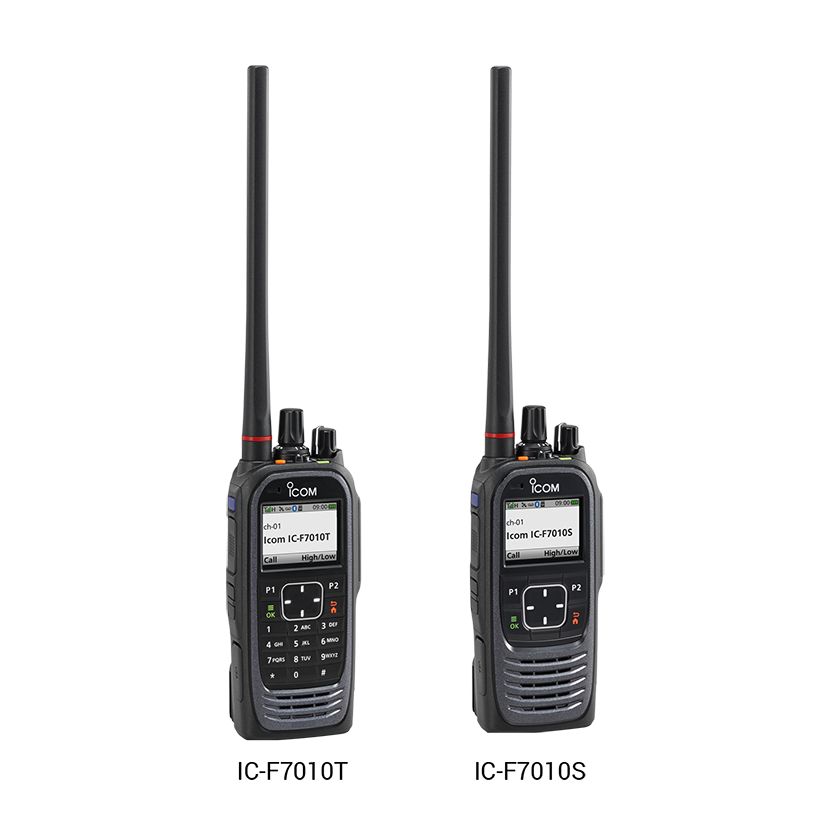

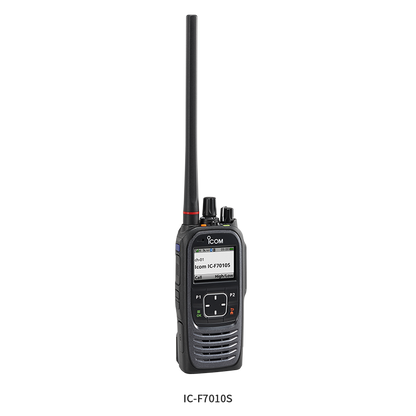

ICOM IC-F7020 UHF P25 Digital Commercial Portable Radio
ICOM IC-F7020 UHF P25 Digital Commercial Portable Radio
ICOM IC-F7020 UHF P25 Conventional and Phase 1/2 Trunking Portable Radio - Smallest and Lightest of Its Class
Hardware Features
Small, Slim and Smart
New engineering techniques, including the use of a custom SoC (System-on-a-Chip) make it possible to create its compact body. The flat sheet keypad provides enough button space while protecting the radio from dust intrusion. Additionally, the slim dimensions of 38.2mm (1.5 inch) are complemented by reduced power consumption, allowing the use of a thinner battery pack, BP-284.
Colour LCD and Enhanced User Interface

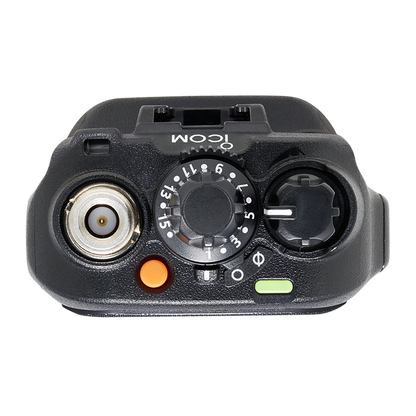

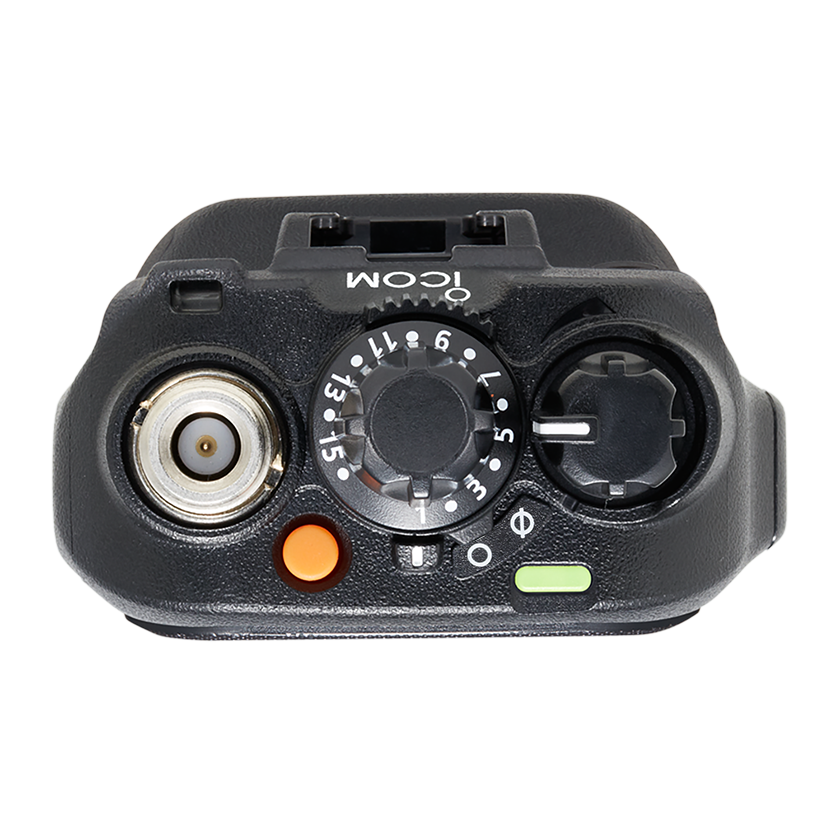

A high-resolution colour LCD screen improves visibility in both natural and indoor lighting conditions. The night mode LCD setting can used in low-lighting or night time conditions. Functions can be easily set by following intuitive icons and menu items. Functions and menu items can be configured in languages other than English, such as French, Spanish, Russian, and Traditional Chinese. 16-position rotary channel selector and convenient Quick concentric switch enhance your user experience, allowing for effortless operation without taking your eyes off.
Day and Night Mode Example
MIL-STD-810 and IP68 Specifications
The IC-F7000 series has been tested to meet U.S. MIL-STD-810 G environmental tests and has a dust-tight and waterproof rating of IP68. It can be used with peace of mind exposed to rain or splashing water, or in dusty conditions such as outside operation.
1300mW Speaker Provides Clear Loud Audio
ICOM’s custom high-power capacity speaker delivers a loud 1300mW audio output with advanced acoustic sound clarity for noisy environments.
Bluetooth® Technology Enables Wireless Operation
The built-in Bluetooth® unit provides a wireless connection with an optional Bluetooth® headset or external Bluetooth® equipment. It also has a VOX function that enables automatic voice transmission in response to your voice, allowing hands-free operation. In addition, third-party wireless Bluetooth® headset (Like a 3M™ Peltor™ WS™ 5) can be used with the radio. Wireless radio programming over Bluetooth® also possible.
## Bluetooth® connection has not been tested for all Bluetooth® compatible devices with this product. This does not guarantee that all devices will work with this product ##
microSD Card Slot for Voice and Data Storage
The IC-F7000 series has a microSD card* slot for data storage. Call record (transmitted and received) audio, GPS log, memory channel settings and firmware file can all be saved onto the microSD card.
## A microSD/micro SDHC is required (up to 32 GB) ##
USB Connector for PC Connection
The IC-F7000 series can be connected to a PC via a USB port, allowing for data transfer mode, or accessing the installed microSD card in mass storage mode.
Intelligent Battery Management
The intelligent battery charger software assesses the battery health, age and cycle count each time a battery is inserted into the intelligent charger. The Eco mode halts charging at around 80–90% capacity to prolong the battery’s lifespan. This ensures optimal maintenance of the batteries and provides an indication of when they may need replacement. Battery information is conveniently displayed on the radio’s screen.
LED lights show status information
| Features | Intelligent Charger | Software |
|---|---|---|
| Intelligent charger | BC-225 | RS-BC225 |
Other Features
- 380-470MHz or 450-512MHz Versions Available
- 1024 Memory Channels / 128 Zones
- 2000 memory channels with optional channel expansion license key,
- Fast resume time wake up from the power save mode
- DTMF autodial
- Internal clock with time auto adjustment
- 14-pin accessory connector
- Programmable vibration alert and ringer beep
- Built-in GPS with GPS position screen
Voice, Audio and Emergency Features
Customizable Audio Quality
P25 radios also implement audio features and settings to compliment the performance of the vocoder.
| Functions | Features |
|---|---|
| Voice Recording/Playback | This function records incoming and outgoing calls in WAV format. Various communication data is embedded in the WAV file, such as User IDs, GPS position, frequency, etc. Up to 500 hours can record to a 32 GB microSD card (user supplied). |
| TX/RX Audio Equalizer | This function can improve the audio readability by increasing or decreasing particular audio frequency components. (Flat, high/mid/low boost, low cut) |
| AF Volume Equalizing | This function adds high-pass filter to provide clear, intelligible audio, when increases the volume |
| TX/RX Active Noise Canceller | This function suppresses background noise and improves both transmitted voice and incoming calls. |
Emergency Call and Alert
To ensure users safety, P25 handheld radios have the following four emergency related functions. If one of these functions are activated, the radio automatically sends an emergency signal.
| Functions | Features |
|---|---|
| Emergency Button | When pressed the Emergency button, the P25 radio automatically transmits an emergency call once or repeatedly. |
| Man Down | When the P25 handheld radio is tilted at a particular angle for a specified time period, the radio enters the Emergency mode. |
| Lone Worker | When no operation is performed or when the user does not move for the specified time period, the radio enters the Emergency mode. |
| Stationary Detection | When the user does not move, and the stationary detection does not detect motion for the specified time period, the radio enters the Emergency mode. |
| Motion Detection | When the user continuously moves the radio and the motion detection sensor exceeds the setting for the specified time period, the radio enters the Emergency mode. |
Other Features
- Voice announcement (Channel number and zone)
- VOX function for hands-free operation
- Adjustable analogue and digital volume level
Click Here to View the Brochure
