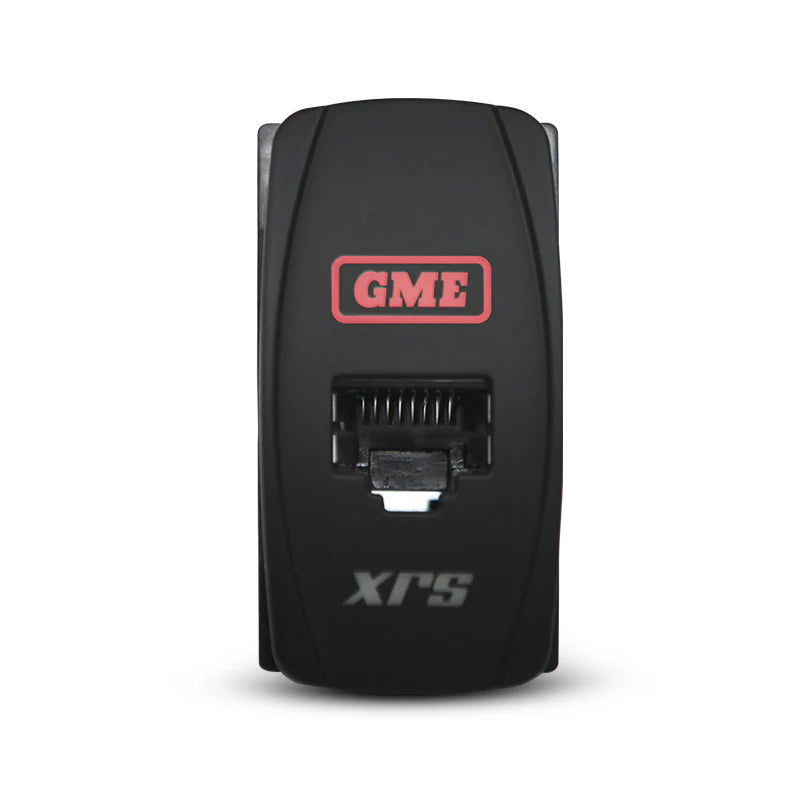

GME XRS-RJ45R6 Microphone RJ45 Pass-Through Adaptor - Type 6



The XRS-RJ45R6 universal pass-through adaptors allow for an XRS™ Connect controller microphone to be integrated into a number of locations and in a variety of vehicles, providing a neat and professional finish. Ideally suited for applications including agriculture machinery, 4WD vehicles, heavy vehicles or any fitment on a flat surface.

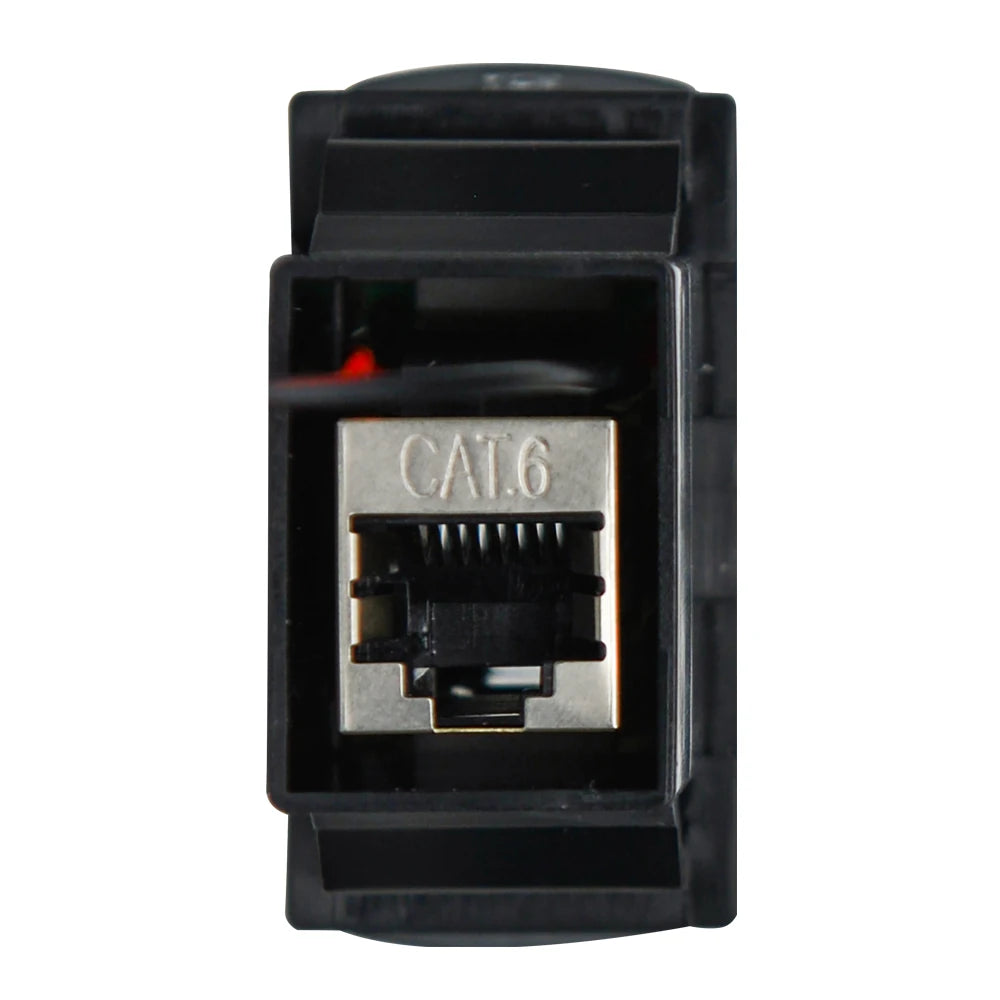

Featuring a CAT.6 compliant, fully shielded housing to minimise RF interference and dual lateral supports front and back for an extremely stable connection ensuring trouble-free communication.

The existing range of XRS-RJ45 pass-through adaptors allows for an XRS™ Connect controller microphone to be integrated directly into a range of blank OEM switch locations, providing a neat and professional finish.

Compatible with selected Toyota models, refer to Compatibility Matrix below for specific models.

Also compatible with other UHF CB radios using an 8 Pin RJ45 Connection.

Click Here to View Compatibility Matrix



Features:

• Suits XRS™ Connect UHF CB Radios
• CAT.6 Compliant, Fully-Shielded Housing
• Red LED Back-light
• Ideally Suited for Universal Applications
• Two Wire Installation: Connect the red wire to the existing 12V dash light circuit and the black wire to the negative circuit
• Total Mounting Depth Excluding Cable Exit: 26mm
• Switch Cut-Out Size Required: 21mm x 37mm (with a panel thickness of 2.0mm)
