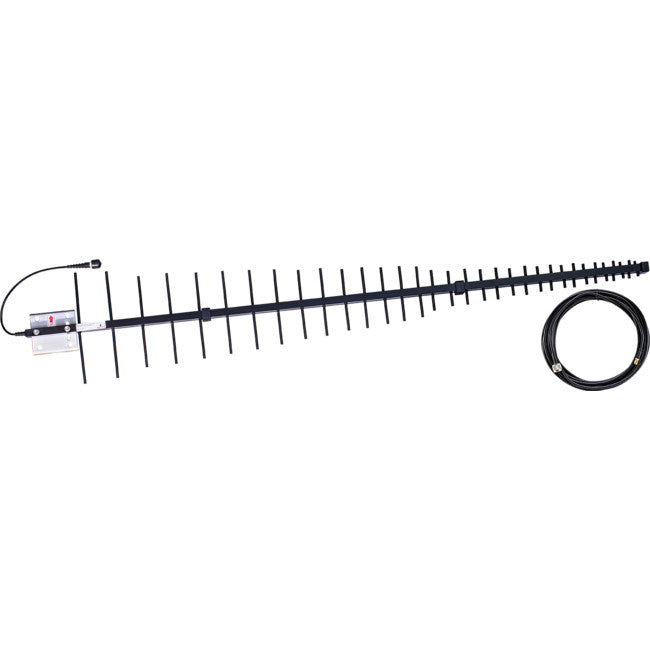

Blackhawk ANT-BH-YG-LOG-LPDA-10 Cellular Directional Yagi Antenna

Operating on all 3G, 4G and 5G frequencies in Australia, this high-grade antenna can be used in a range of residential, commercial, and industrial mobile broadband applications on any mobile network.

This is the ideal external antenna for Cel-Fi repeater systems.

The Blackhawk LPDA Antenna provides an ideal solution for3G/ 4G voice and data applications.

With the rollout of new 3G, 4G and even 5G frequencies, traditional Yagi antennas just haven't been able to keep up.

LPDA antennas allow a single antenna to cover all frequencies with the high gain of a Yagi antenna that rural and remote areas demand.

This one antenna can be used on any mobile phone network in Australia, in any area without worrying about compatibility.

A Log Periodic Dipole Antenna, or LPDA for short, is a clever antenna design that provides exceptional wide-band performance by phasing a series of elements together, much like an ordinary Yagi but with each successive element of a smaller (or larger) length.

The result of this clever engineering is an antenna that holds high gain, with good tuning, across the entire cellular frequency range.

FEATURES

• 12dBi gain across lower bands 698-960 MHz
• 14dBi gain across bands 1710-2700 MHz
• 12dBi gain across upper bands 3300-4000 MHz
• Ruggedised construction for Australian conditions
• Fully welded, powder coat aluminium design
• Stainless steel mounting clamp included
• 30 cm tail with pre-terminated N Female connector
• Ideal for high-speed 3G and 4G LTE applications.
• Ideal for Telstra Next-G and 4GX networks, Optus, and Vodafone 3G/4G & 5G



ELECTRICAL SPECIFICATION

Frequency Range (MHz)	698-960 / 1710-2700/ 3300-4000
Input Impedance	50 Ohm
Peak Gain	12 / 14dBi
VSWR	≤2.5:1 /≤1.8:1
Polarisation	Vertical, linear
Horizontal Beam-width	55 / 42°
Vertical Beam-width	46 / 34°
Maximum Input Power	50 W



Input Connector	N Female
Cable	30 cm cable tail
Lightning Protection	DC Ground
Radiator Material	Fully welded aluminium, black powder coat
Mounting	Stainless Steel, pole mount Ø30-50 mm
Dimensions	1240 x 200 x 60 mm
Packing Dimensions	1290 x 210 x 90 mm
Weight	2.2 kg
Rated Wind Velocity	192 km/h
Operating Temperature	-40 to 65°C
