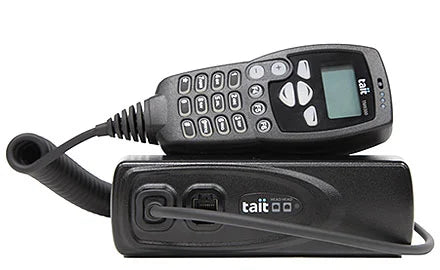

Tait TM9355 DMR Mobile Radio - Hand Held Control Head

TM9355 SPECIFICATIONS

FEATURES AND BENEFITS

Improve Workforce Safety
- Lone Worker as standard
- Tait Geo-Fencing option for Automated Location Controlled Behaviour
- Crystal-clear voice so the operator and user will understand the message
- Emergency calls have priority access to the network, and can be integrated with a GNSS location solution
- Blast Alarms and Audible Alerts in DMR modes

Tait Geo-Fencing Automation
- Radios can automatically take a range of actions based on location, such as change modes, send messages, hazardous area alert, activate lone worker features, or activate radio I/O's to turn lights on
- Independent of the network, dispatch, or any other software applications

Improve Your Organization's Efficiency
- Text messaging for enhanced and unambiguous communications
- Pre-defined status messages for fast notification and response in common situations
- Over-the-air-programming(OTAP) with the Tait EnableFleet configuration management system delivers software and firmware changes over the Tait DMRTier3 radio network or Wi-Fi (when optional TU2000M3 is fitted), making it faster, easier and more affordable to update and optimize the performance of radios in your fleet

Privacy Features
- Individual calls provide privacy
- Optional DES or AES encryption for privacy of conversations

Facilities to Improve Network Security
- When operating in DMR mode all radios must be authenticated on the network before they are given access
- Stun and Revive are implemented to temporarily deny a specific radio access to the network

Highly Flexible and Designed for Demanding Environments
- Rugged design exceeds MIL-STD-810G tests for humidity, salt fog, vibration, shock and solar radiation and is IP54 rated for protection against dust and splashing water
- Control head options include high definition colour screen and Hand Held Control Head
- Remote mount options19ft and 40ft (6mand12m) options
- Dual head options

High-Performance Voice Communications Capabilities
- Open DMR standard provides choice and interoperability
- Quad mode mobile offering Trunked DMR, Conventional DMR, MPT1327 and analogue conventional FM in one device
- Roam between DMRTier3 and MPT1327 trunked networks
- Roam between conventional FM analogue and DMRTier2 conventional networks
- Channel Authorization for DMR Tier2 and Tier3 gives users confidence their call will be heard
- Proceed to Talk Tone available in all modes, for consistent operation
- Scanning modes include: priority, dual priority, zone, and background scan - groups are editable
- Group calls allow separate teams to communicate amongst themselves without being distracted by others
- PSTN dialling allows a user to make phone calls on DMR systems that support telephone interconnect
- Increased channel capacity with support of up to 4,000 channels
- Last over repeat capability to hear missed calls when TU2000M3 option board is fitted
- Bluetooth Audio available when TU2000M3 option board is fitted

Data Services
- Embedded data for location
- Short data messages for location, status and text
- Internal and external GNSS options available to improve efficiency and safety
- Packet data over traffic channels for workforce management, Telemetry, SCADA and customer specific applications
- CCDI connectivity to the mobile for short data and control messages in conventional mode
- RAP connectivity to the mobile for short data and control messages in trunked mode
- IP data in digital trunked mode
- USBD Fast Polling - capable of 2000 polls per minute on compatible DMR Tier3 systems

TM9300 Options and Accessories
- Enable any combination of Bluetooth audio, Wi-Fi OTAP, Last Over Repeat and On Board Voice Recording capabilities with the TU2000M3 Option Board
- Options board space for Tait-developed or third-party options boards
- Digital and analogue interfaces allow a range of accessory options for the TM9300
- A range of audio accessories are available including microphones, speakers and installation options
- Variety of vehicle installation kits for different mounting options

Colour Options
- TM9300 mobile Hand Held Control heads are available in black, yellow, green and red and Large Control Heads in black, yellow and green.
- Different colour options make it easier for work groups to identify their equipment in the field



Available in Tri-Mode in VHF or UHF Versions:

TM9355B1AAACU01001 - Tri-Mode VHF 136-174MHz

TM9355H5AAACU01001 - Tri-Mode UHF 400-470MHz

TM9355H7AAACU01001 - Tri-Mode UHF 450-520MHz



Available in Quad-Mode with Trunking in VHF or UHF Versions:

TM9355B1AAACU01009 - Quad-Mode Trunked VHF 136-174MHz

TM9355H5AAACU01009 - Quad-Mode Trunked UHF 400-470MHz

TM9355H7AAACU01009 - Quad-Mode Trunked UHF 450-520MHz



## Pricing includes the U Cradle Installation Kit - Please Contact Us for Pricing on Alternative Installation Options (Slide in Cradle, Security Cradle or Universal Cradle)





Click Here to View the Brochure
